Value Collection MKCS14C0509MBPKG M14x2 Socket Cap Screw 5-pack

Product Description

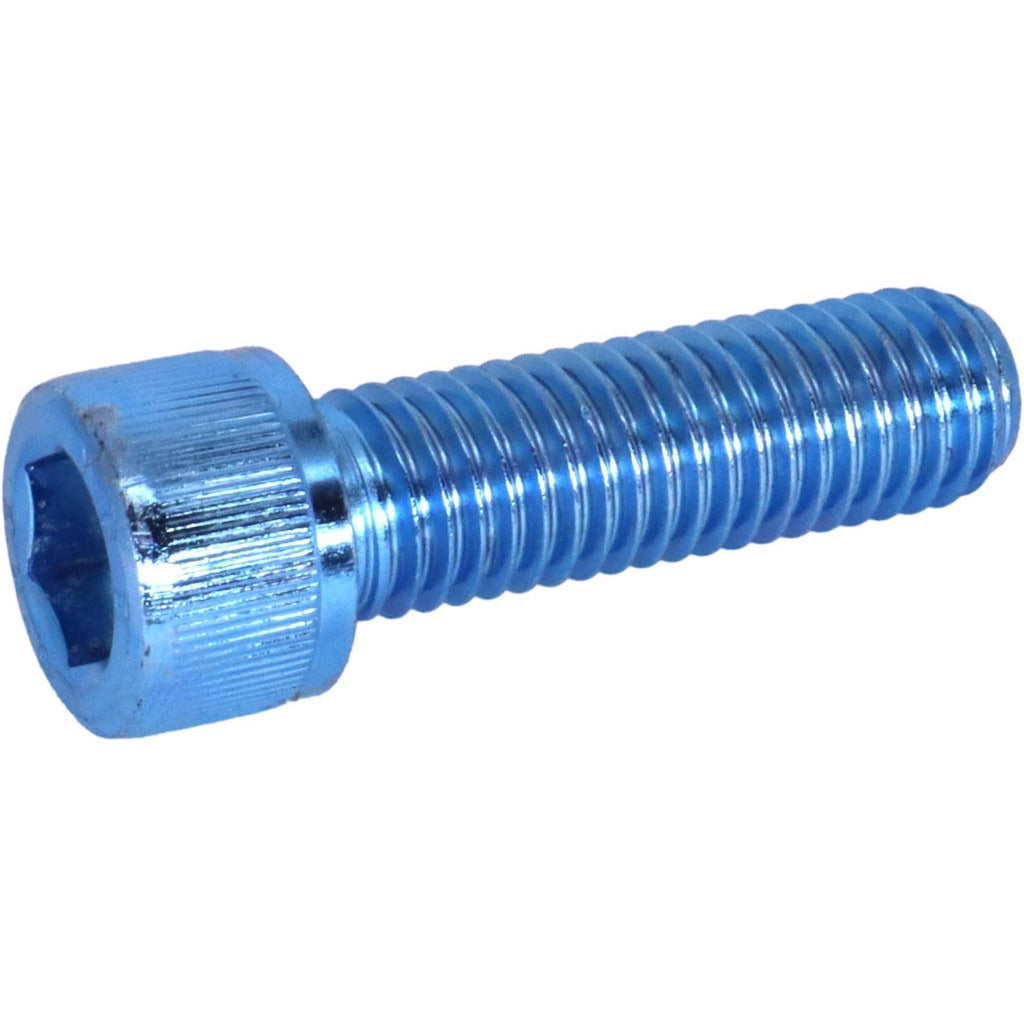

The VALUE COLLECTION MKCS14C0509MBPKG is a fully threaded socket cap screw with an M14x2 thread size and a 50 mm length under the head. Manufactured from alloy steel to material grade 12.9, it delivers high tensile strength suited for heavy-duty fastening applications. The zinc-blue trivalent chromate finish provides corrosion resistance and meets RoHS and REACH compliance requirements. The hex socket drive accepts a 12 mm hex key for installation and removal. This package contains 5 screws. Mechanical contractors, millwrights, and industrial maintenance technicians regularly specify grade 12.9 socket cap screws for structural and equipment-mounting work.

These socket cap screws are suited for general industrial fastening, machinery assembly, and structural connections where a recessed hex-drive fastener is required. The coarse M14x2 right-hand thread engages standard metric tapped holes. The DIN 912 and ISO 4762 standards govern the dimensional and mechanical requirements these screws meet, making them a direct fit wherever those specifications are called out on engineering drawings or maintenance documentation.

Key Features

• M14x2 coarse right-hand thread, fully threaded along the 50 mm shank length
• Alloy steel construction at material grade 12.9 for high-strength fastening
• Zinc-blue trivalent chromate finish for corrosion resistance
• 12 mm hex socket drive for precise torque application with a hex key
• Meets DIN 912 and ISO 4762 dimensional standards
• RoHS and REACH compliant

Compatibility

Designed as a standard metric socket cap screw per DIN 912 and ISO 4762 for use in any application requiring an M14x2 fully threaded hex-socket fastener in that standard.

Installation Notes

Installation should be performed by a qualified mechanic or maintenance technician using a calibrated torque wrench and the correct 12 mm hex key or bit. De-energize and lock out all equipment before fastener work on powered machinery, following applicable LOTO procedures. Do not reuse fasteners that show signs of thread damage, galling, or corrosion. Grade 12.9 fasteners should not be substituted with lower-grade hardware without verifying joint design requirements.
