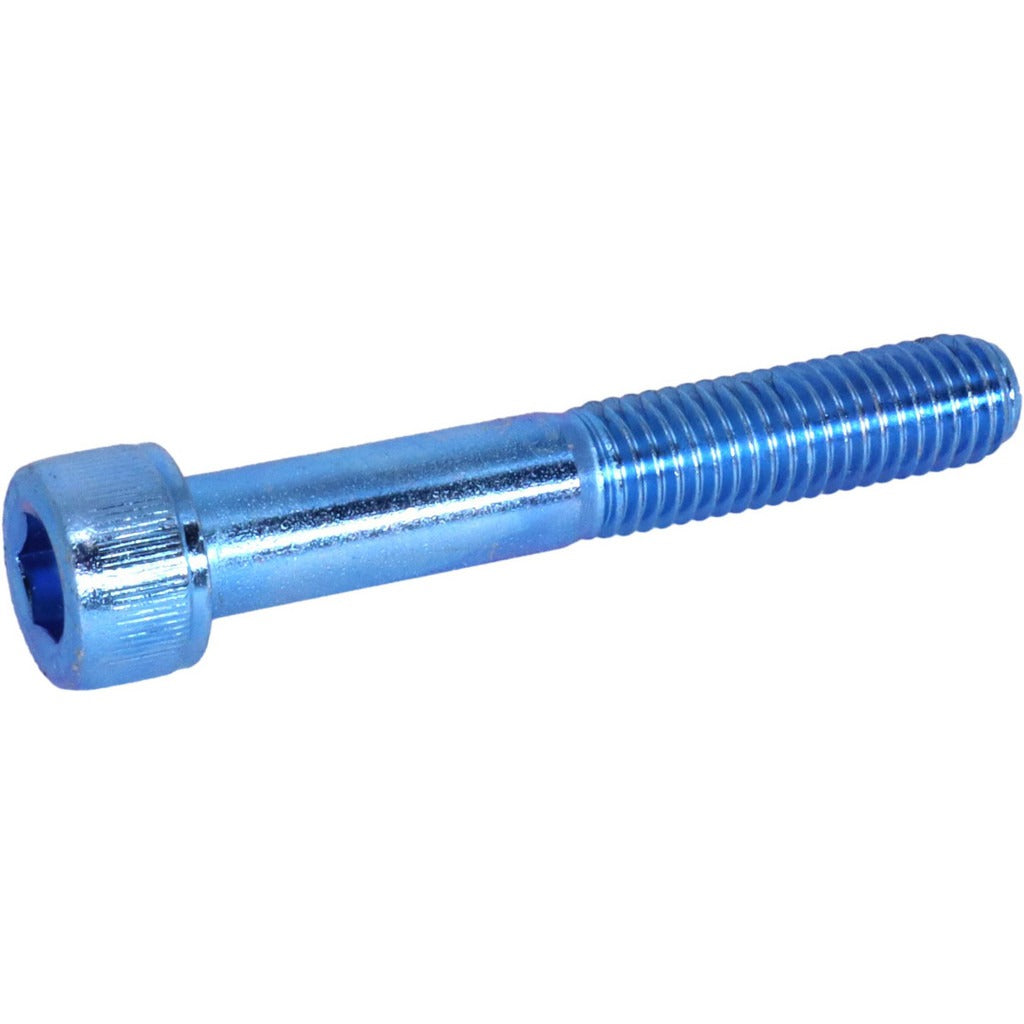

Value Collection MKCS12C1009MBPKG M12x1.75 Cap Screw 5-pack

Product Description

The VALUE COLLECTION MKCS12C1009MBPKG is a partially threaded socket cap screw designed for high-strength fastening applications across mechanical, structural, and industrial assemblies. Built from Grade 12.9 alloy steel with a zinc-blue trivalent chromate finish, this fastener delivers exceptional tensile strength and corrosion resistance. The M12x1.75 coarse thread and 100 mm length under head make it well-suited for bolted joints requiring controlled thread engagement. A 10 mm hex (Allen) drive allows high torque installation with standard hex key tooling. Sold in a pack of 5. Installed by machinists, millwrights, and maintenance technicians.

This screw is used in a wide range of industrial and mechanical applications including machine frames, jigs, fixtures, equipment housings, and structural steel connections. The partial threading provides a smooth shank section that improves shear resistance and precision alignment in close-tolerance bores. The trivalent chromate finish meets RoHS and REACH compliance requirements, making it suitable for environmentally regulated manufacturing environments. Applicable in both light and heavy industrial settings where high clamp load and dimensional accuracy are required.

Key Features

• Grade 12.9 alloy steel construction for maximum tensile and yield strength
• Partial threading provides smooth shank for improved shear load capacity and alignment
• Zinc-blue trivalent chromate finish is RoHS and REACH compliant
• M12x1.75 coarse right-hand thread conforms to DIN 912 and ISO 4762 standards
• 10 mm internal hex drive accepts standard Allen keys and hex bit drivers
• 18 mm head diameter provides solid bearing surface under load

Compatibility

Designed as a standard DIN 912 and ISO 4762 compliant socket cap screw, compatible with any M12x1.75 coarse-thread tapped hole or nut conforming to those fastener standards.

Installation Notes

Installation is performed by machinists, millwrights, or maintenance technicians using a 10 mm hex key or Allen bit driver. Always ensure the mating tapped hole is clean, undamaged, and matches the M12x1.75 coarse thread specification before installation. De-energize and lock out equipment before servicing any assembly that requires fastener removal or replacement. Do not exceed the rated torque range for Grade 12.9 M12 fasteners as specified by applicable engineering standards for the joint design.
