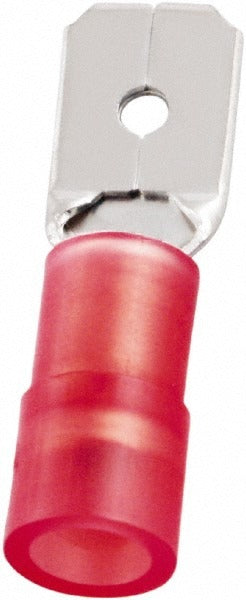

Value Collection MDNYD1-110(5) Male Wire Disconnect

Product Description

The VALUE COLLECTION MDNYD1-110(5) is a male wire disconnect terminal designed for fast, reliable electrical connections in control wiring applications. The terminal features a double crimp connection style and a 0.11-inch tab width, accepting 22 to 16 AWG wire with a cross-section range of 0.50 to 1.50 square millimeters. The partially insulated nylon sleeve is red for quick polarity and circuit identification. Brass contact material provides solid conductivity and corrosion resistance. Electricians and controls technicians use this style of disconnect when building or servicing low-voltage wiring harnesses, control panels, and equipment terminals.

This disconnect terminal is suited for residential and light commercial electrical and controls work where push-on tab connections are standard. Typical applications include HVAC control boards, appliance wiring harnesses, panel wiring, and any installation requiring a removable male spade-style termination. The red nylon insulation sleeve helps differentiate circuits in multi-wire assemblies. The 0.11-inch tab width is a widely used standard dimension that mates with matching female disconnect receptacles across many control and equipment platforms.

Key Features

• Double crimp connection for secure mechanical and electrical contact on 22-16 AWG wire
• Brass contact material for reliable conductivity and corrosion resistance
• Partially insulated red nylon sleeve for circuit identification and finger protection
• 0.11-inch tab width mates with standard female disconnect receptacles
• UL Listed and cUL Listed; RoHS Compliant

Compatibility

Designed for use with 22 to 16 AWG copper wire (0.50 to 1.50 square millimeters). Mates with standard female spade disconnect terminals accepting a 0.11-inch tab width.

Installation Notes

Installation is typically performed by licensed electricians or controls technicians. Use a calibrated ratcheting crimp tool rated for the wire gauge and terminal type to ensure a proper double crimp. De-energize the circuit completely before terminating or removing any disconnect. Verify the mated female terminal tab width matches 0.11 inches before assembly to ensure a secure, low-resistance connection.
