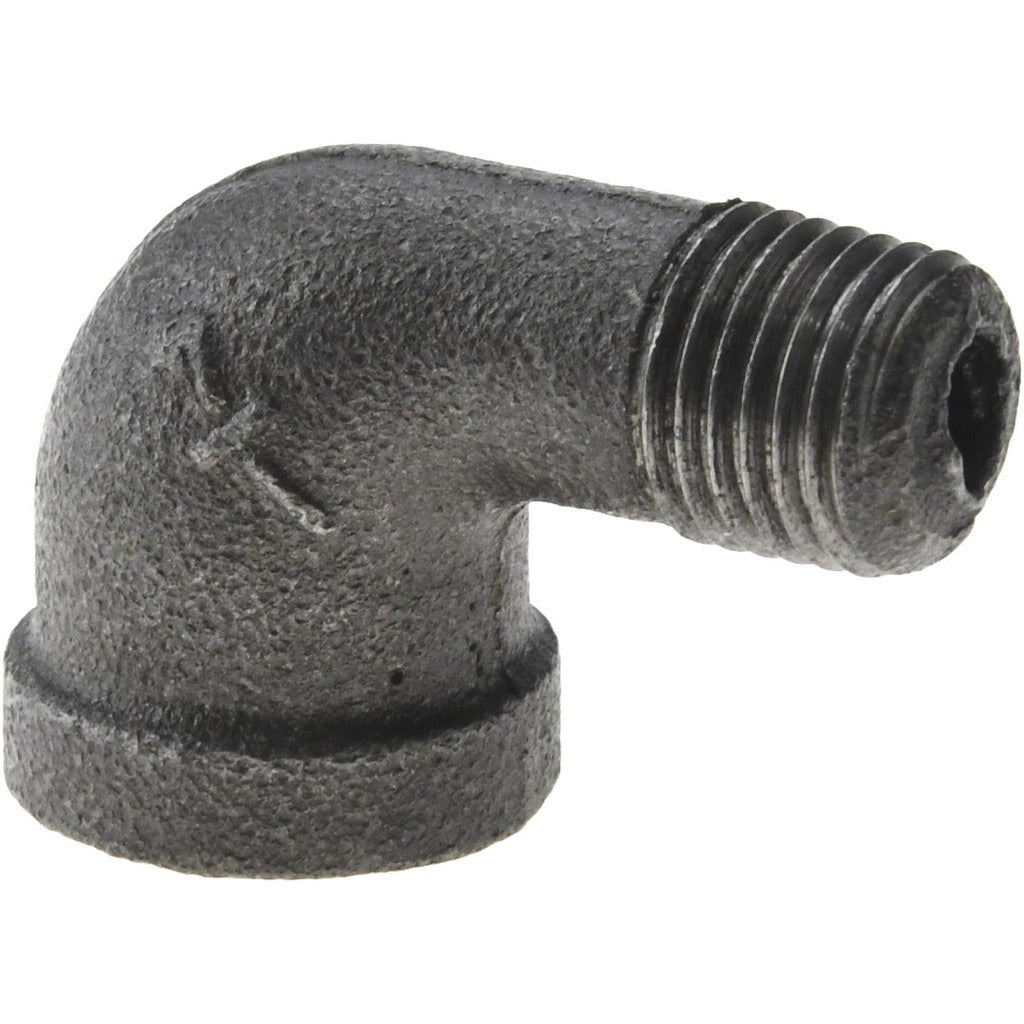

Value Collection MDB92 8-5 90 Degree Street Elbow 1/4 in

Product Description

The VALUE COLLECTION MDB92 8-5 is a 90-degree street elbow fitting designed for threaded pipe assemblies in plumbing, gas, and mechanical systems. Manufactured from malleable iron with a black finish, this Class 150 fitting handles liquid and gas service at up to 300 psi. It ships in a package of five and is sized for 1/4-inch pipe. Licensed plumbers and pipefitters install this type of fitting when routing a branch or changing direction in a low-pressure threaded iron pipe system. The black finish is standard for gas distribution and fire protection piping.

This street elbow is suited for residential and light commercial applications where a compact directional change is needed in a threaded iron pipe run. One end accepts a male thread (the street end) and the other accepts a female thread, allowing direct connection without a nipple. Typical uses include natural gas distribution, compressed air lines, water distribution, and steam service at appropriate pressure ratings. The Schedule 40-compatible design fits standard NPT-threaded pipe assemblies.

Key Features

• Malleable iron construction provides durability in both liquid and gas service
• Black finish standard for gas piping and fire protection applications
• Class 150 rated with a 300 psi liquid and gas pressure rating
• Threaded end connections compatible with Schedule 40 pipe
• Meets multiple standards including FM Approved, cULus Listed, ISO 7/1, EN 10242, ABNT Certified, GB/T 3287, and GB/T 7306.2
• Packaged in quantities of five for convenience on multi-point installations

Compatibility

Designed as an OEM-style replacement or new-installation fitting for 1/4-inch threaded malleable iron pipe systems operating within Class 150 pressure parameters.

Installation Notes

Installation should be performed by a licensed plumber or pipefitter in accordance with applicable local plumbing codes and IFGC requirements for gas service. Shut off and depressurize the pipe system completely before disassembling any threaded connections. Apply an appropriate thread sealant or listed pipe tape to male threads before assembly, and tighten to hand-tight plus the recommended turns per fitting size without over-torquing malleable iron threads. Inspect for leaks after restoring pressure to the system.
