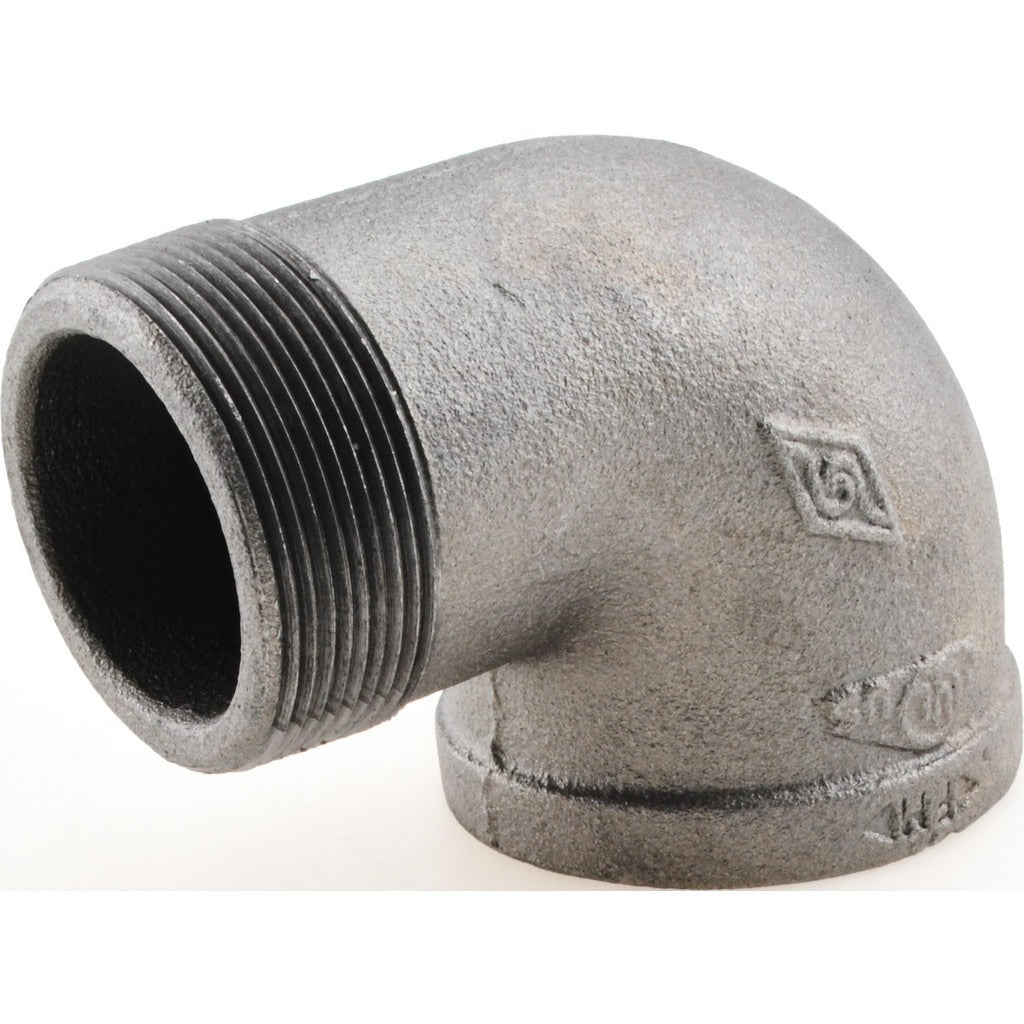

Value Collection MDB92 50-5 Black 90 Degree Street Elbow

Product Description

The VALUE COLLECTION MDB92 50-5 is a 2-inch black malleable iron 90-degree street elbow designed for threaded pipe systems operating in commercial and industrial piping applications. Built to Class 150 standards with a Schedule 40 profile, this fitting handles liquid and gas service at up to 300 psi. The black finish is applied over malleable iron construction, providing durability in exposed and concealed installations. It carries multiple certifications including ABNT, EN 10242, FM Approval, GB/T 3287, GB/T 7306.2, ISO 7/1, and cULus Listing, making it suitable for demanding, code-compliant installations. Licensed plumbers and pipefitters are the primary installers for this type of fitting.

This street elbow is used in residential, commercial, and light industrial piping systems where a 90-degree directional change is required on a threaded run. The male-by-female threaded configuration — characteristic of a street elbow — allows direct engagement into a fitting without a nipple, saving space in tight installations. Typical applications include gas distribution piping, water supply lines, fire protection systems, and general fluid conveyance where malleable iron fittings are specified. This item is sold in a package quantity of 5.

Key Features

• Malleable iron construction with black finish for corrosion resistance in standard service environments
• 90-degree street elbow geometry eliminates the need for an additional nipple at direction changes
• Class 150, Schedule 40 rated for liquid and gas service up to 300 psi
• 2-inch threaded end connections for standard NPT pipe systems
• Multi-standard certified: ABNT, EN 10242, FM Approved, GB/T 3287, GB/T 7306.2, ISO 7/1, cULus Listed
• Sold in a package of 5 units per order

Compatibility

Designed as an OEM-style replacement or new-installation fitting for 2-inch threaded malleable iron piping systems conforming to Class 150 and Schedule 40 specifications.

Installation Notes

Installation should be performed by a licensed plumber or pipefitter in accordance with applicable local codes, IPC, and IFGC requirements. Shut off and depressurize the line completely before removing or installing any threaded fitting. Use appropriate pipe thread sealant or PTFE tape on all male threads and torque connections using a properly sized pipe wrench — avoid over-tightening, which can crack fittings. Verify system pressure rating does not exceed the 300 psi limit after installation.
