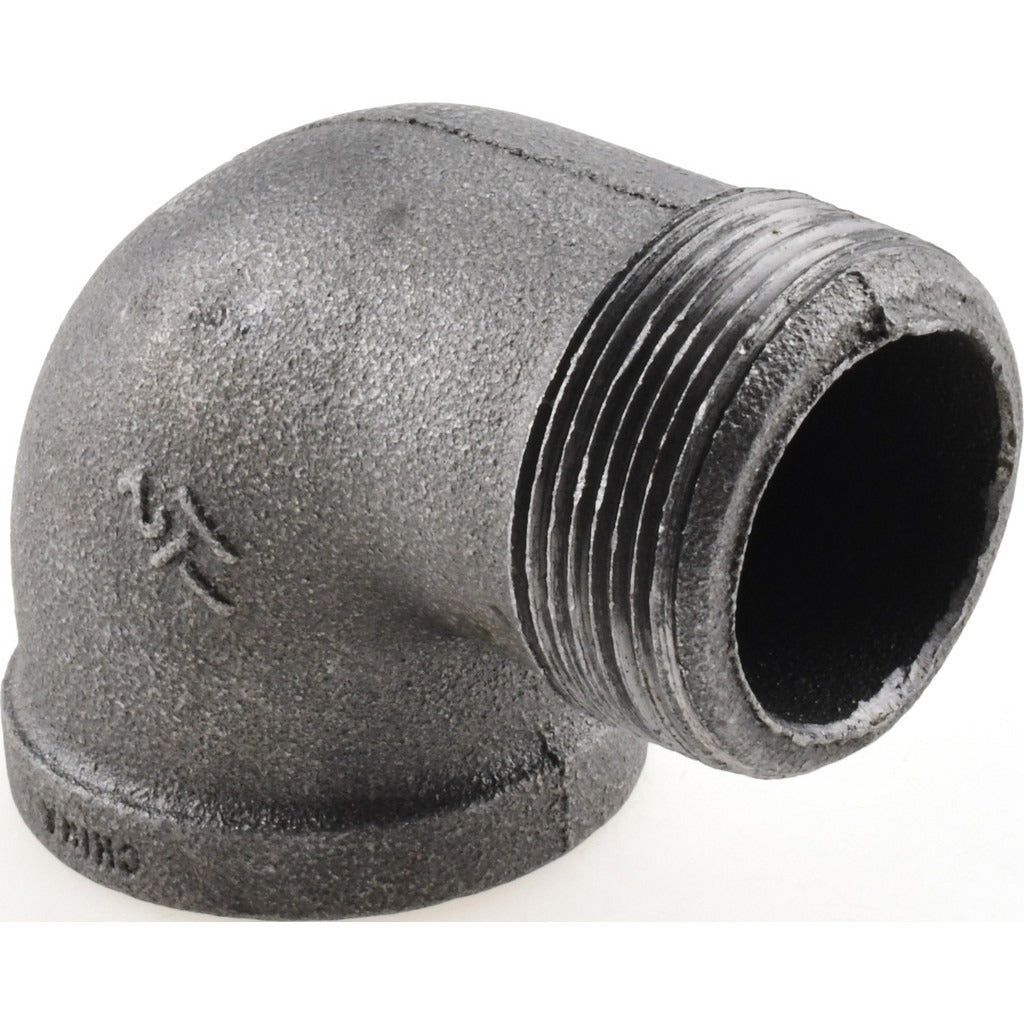

Value Collection MDB92 40-5 90 Street Elbow 1-1/2 in Threaded

Product Description

The VALUE COLLECTION MDB92 40-5 is a 90-degree street elbow designed for threaded pipe systems in commercial and residential plumbing, gas distribution, and mechanical piping applications. Constructed from malleable iron with a black finish, this Class 150 fitting accepts a male thread on one end and a female thread on the other, allowing a direction change without a coupling. The 1-1/2-inch size fits standard NPT threaded pipe. It meets a broad set of international and domestic standards including ABNT, EN 10242, FM Approval, GB/T 3287, GB/T 7306.2, ISO 7/1, and cULus listing, making it suitable for a wide range of regulated installations.

This street elbow is used in low-pressure gas piping, water distribution, fire protection, and general mechanical systems where a 90-degree change of direction is required at a threaded connection point. The street configuration is especially useful in tight spaces where a standard elbow and nipple combination would not fit. Licensed plumbers, pipefitters, and mechanical contractors typically install this fitting in both new construction and retrofit work.

Key Features

• Malleable iron construction provides durability in threaded pipe assemblies
• Black finish suited for gas and non-potable water piping systems
• Class 150 pressure rating meets standard low-pressure mechanical piping requirements
• Street configuration combines male and female threads to reduce fitting count in tight runs
• Certified to ABNT, EN 10242, FM, GB/T 3287, GB/T 7306.2, ISO 7/1, and cULus standards
• Sold in a package quantity of 5 with a minimum order quantity of 1

Compatibility

Designed as an OEM-style replacement or new-installation fitting for 1-1/2-inch NPT threaded malleable iron pipe systems in Class 150 applications.

Installation Notes

Installation should be performed by a licensed plumber or pipefitter in accordance with applicable codes such as the IPC or IFGC. Shut off and depressurize the pipe system completely before disassembling any existing fittings. Apply an approved thread sealant or PTFE tape to the male threads before assembly and tighten to hand-tight plus the appropriate number of turns per pipe size. Do not over-torque malleable iron fittings, as the material can crack under excessive force.
