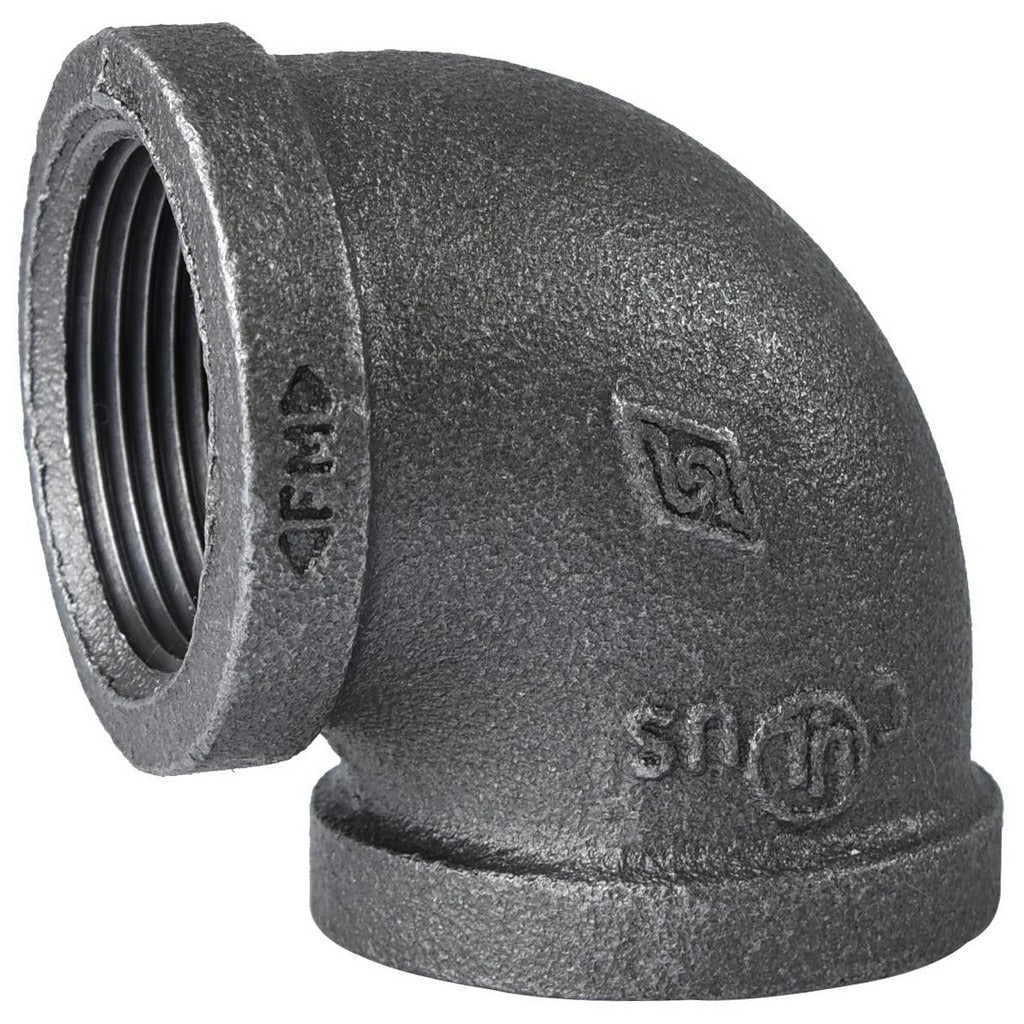

Value Collection MDB90 32-2 300 1-1/4 in Black Iron 90 Elbow

Product Description

The VALUE COLLECTION MDB90 32-2 300# is a 1-1/4 inch malleable iron black pipe 90 degree elbow rated for Class 300 service at 300 psi. Threaded end connections allow for fast, tool-accessible assembly without welding. The black finish is standard for gas and mechanical piping applications where galvanized fittings are not required. This elbow redirects flow at a 90 degree angle and is designed for installation by licensed plumbers, pipefitters, and HVAC mechanics working on black iron pipe systems in residential and light commercial settings.

This fitting is suited for use in natural gas supply lines, steam systems, compressed air distribution, and general black iron pipe assemblies. The threaded connection type conforms to standard NPT practices, making it compatible with Schedule 40 and Schedule 80 black iron pipe in the same nominal pipe size. It is commonly used in boiler rooms, mechanical rooms, and gas rough-in work where rigid iron piping is specified.

Key Features

• 1-1/4 inch nominal pipe size for mid-range diameter iron pipe runs
• Class 300 pressure rating at 300 psi for demanding service conditions
• Malleable iron construction provides impact resistance and ductility over cast iron
• Black finish suitable for gas piping and non-potable mechanical systems
• Threaded end connection for standard NPT assembly without welding
• Certified to multiple standards including NSF/ANSI 61, NSF/ANSI 372, FM Approved, and cULus Listed

Compatibility

Designed as an OEM-style replacement or new-installation fitting for 1-1/4 inch black iron pipe systems using threaded NPT connections in Class 300 rated assemblies.

Installation Notes

Installation should be performed by a licensed plumber or pipefitter in accordance with applicable local mechanical and plumbing codes, including IFGC requirements where gas service is involved. Shut off and depressurize the pipe system completely before disassembling any threaded connections. Apply appropriate pipe thread sealant or PTFE tape rated for the service medium before threading the fitting. Do not over-tighten threaded fittings; hand-tighten and finish with a pipe wrench to achieve a proper seal without cracking the fitting.
