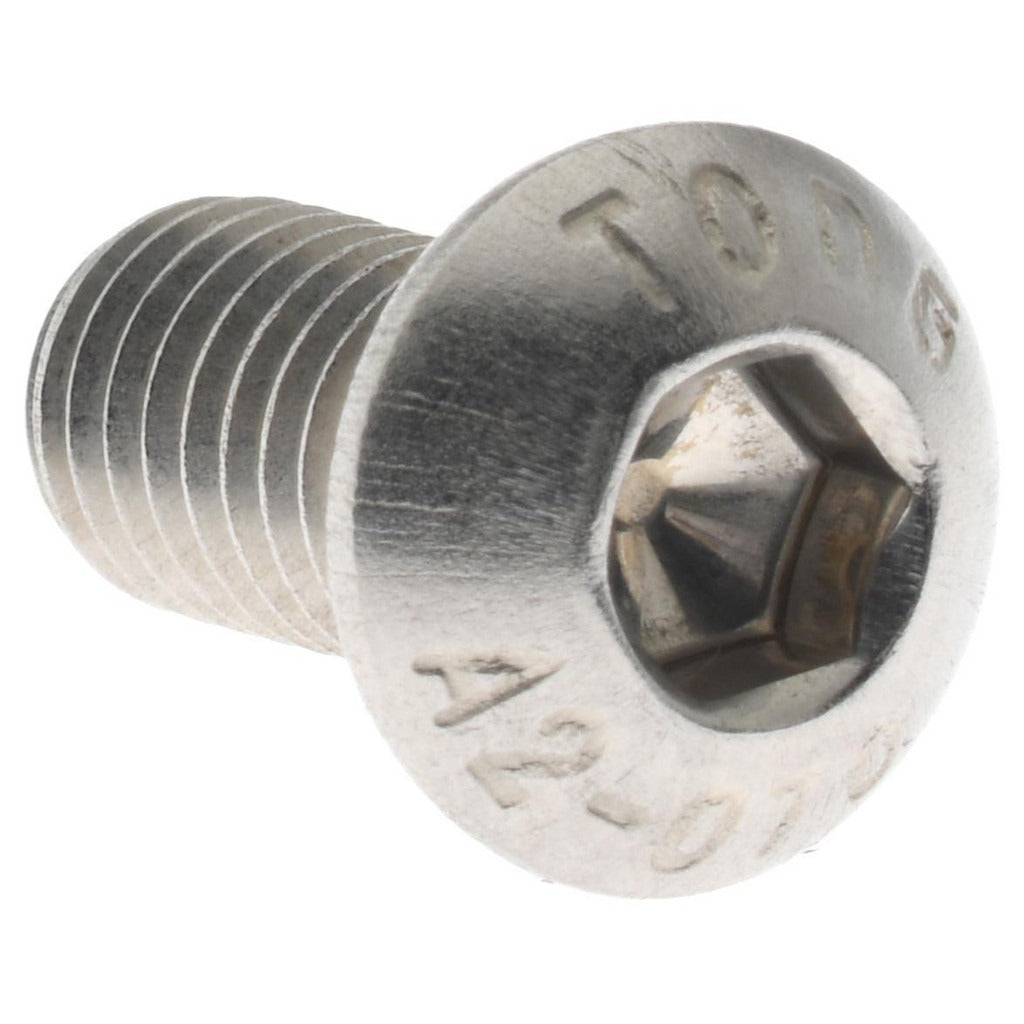

Value Collection MABS0060012CP M6x1 Button Socket Cap Screw

Product Description

The VALUE COLLECTION MABS0060012CP is a metric button socket cap screw made from A2 (18-8) stainless steel with a bright, uncoated finish. It features an M6x1 thread and a 12 mm length under head, with full threading along the shank. The low-profile button head accepts a 4 mm hex socket drive. This screw conforms to ANSI/ASME B18.3.4M and ISO 7380 standards. It is used in applications where a rounded, low-clearance head is required and where corrosion resistance is a priority. Machinists, maintenance technicians, and assembly professionals are the primary installers.

This screw is suited for light to medium fastening applications in machinery, enclosures, electronics housings, and similar assemblies where head height must be minimized. The A2 stainless steel construction makes it appropriate for mildly corrosive environments such as food processing equipment, marine equipment ancillary hardware, and outdoor structural components. The right-hand metric thread mates with standard M6 tapped holes and M6 hex nuts. Sold individually, with a minimum order quantity of 100 pieces.

Key Features

• M6x1 metric thread with right-hand thread direction for standard M6 tapped holes
• Low-profile button head reduces clearance requirements compared to standard socket cap heads
• 4 mm hex socket drive for use with standard allen keys and hex bit drivers
• A2 (18-8) stainless steel construction provides corrosion resistance in mildly aggressive environments
• Bright, uncoated finish suitable where appearance and dimensional accuracy matter
• Conforms to ANSI/ASME B18.3.4M and ISO 7380 fastener standards

Compatibility

Designed as a standard metric replacement or production fastener for any assembly requiring an M6x1 button socket cap screw per ISO 7380. Fits standard M6 tapped holes and M6 clearance holes per metric fastener specifications.

Installation Notes

Installation is performed by machinists, assemblers, or maintenance technicians using a 4 mm hex key or hex socket driver. Ensure mating threads are clean and free of debris before installation. Do not exceed the mechanical limits of A2 stainless steel in high-load or high-torque applications where higher-grade alloy fasteners may be required. Follow applicable torque tables from recognized fastener standards for M6 metric hardware.
