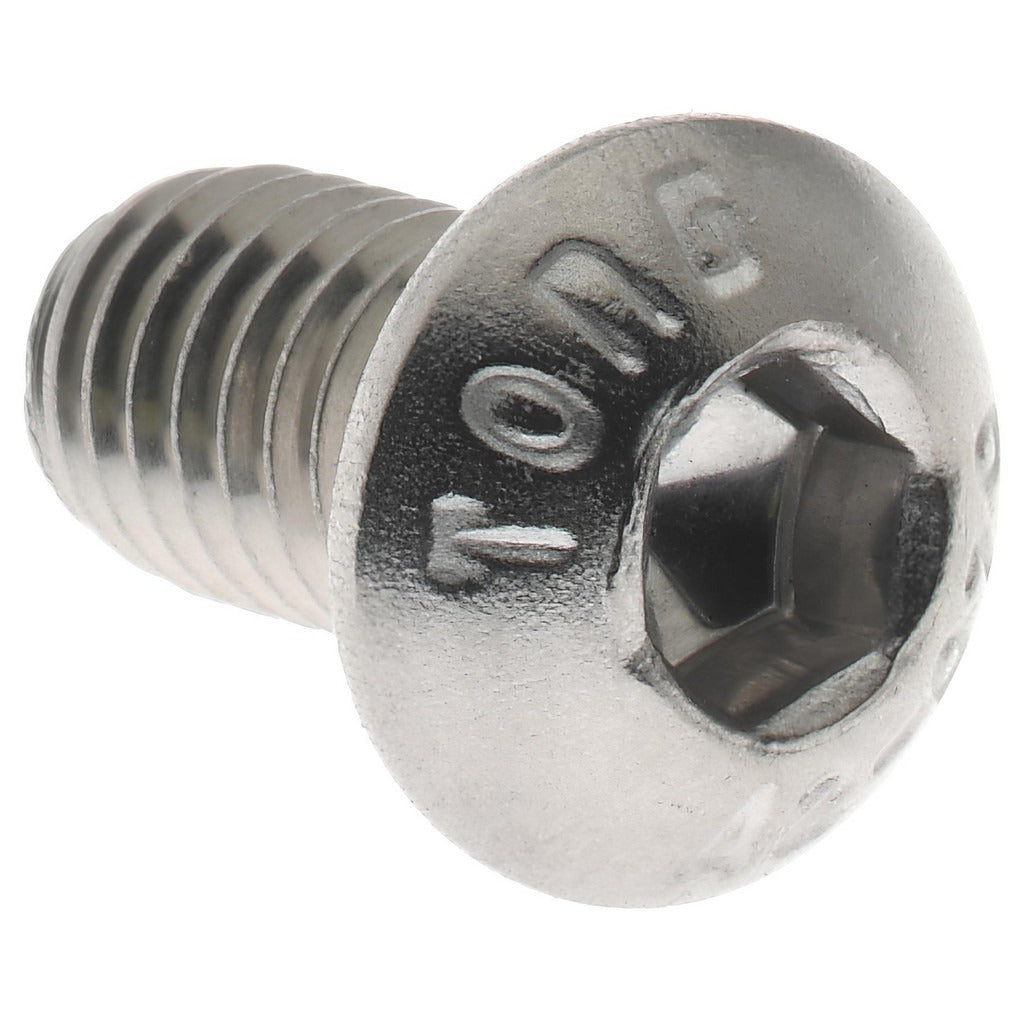

Value Collection MABS0060010CP M6x1 Button Socket Cap Screw

Product Description

The VALUE COLLECTION MABS0060010CP is a fully threaded button socket cap screw designed for metric fastening applications requiring a low-profile head. Manufactured from A2 (18-8) stainless steel with a bright, uncoated finish, this screw offers good corrosion resistance in general industrial and mechanical environments. It uses an M6x1 thread and a 4 mm hex socket drive, accepting a standard hex key or Allen driver. The button head profile reduces snag points and distributes clamping load over a wider surface area compared to a standard socket cap head. This fastener conforms to ANSI/ASME B18.3.4M and ISO 7380 standards.

This button socket cap screw is suited for light to medium clamping applications in fabrication, equipment assembly, machine guarding, and general maintenance work. The metric M6x1 thread and stainless steel construction make it a common choice in food processing equipment, marine hardware, and industrial assemblies where mild corrosion resistance is required. It installs in any application calling for an ISO 7380-compliant button head fastener with a hex socket drive.

Key Features

• M6x1 metric thread with right-hand thread direction for standard installation
• 4 mm hex socket drive compatible with standard Allen keys and hex bit drivers
• Button head profile per ISO 7380 for low-profile, snag-resistant fastening
• A2 (18-8) stainless steel construction for corrosion resistance in general-duty applications
• Bright, uncoated finish — no additional treatment required for most indoor and light outdoor applications
• Conforms to ANSI/ASME B18.3.4M and ISO 7380 fastener standards

Compatibility

Designed as an OEM-style replacement or assembly fastener for any application requiring an ISO 7380 M6x1 fully threaded button socket cap screw with a 4 mm hex socket drive.

Installation Notes

Installation is performed with a 4 mm hex key or Allen-drive bit. Ensure mating threads are clean and free of debris before assembly. Do not exceed the recommended seating torque for A2 stainless steel M6 fasteners, as stainless hardware is susceptible to galling under excessive torque — apply an anti-seize compound to the threads when galling risk is elevated. Follow applicable mechanical assembly standards for the equipment or structure being serviced.
