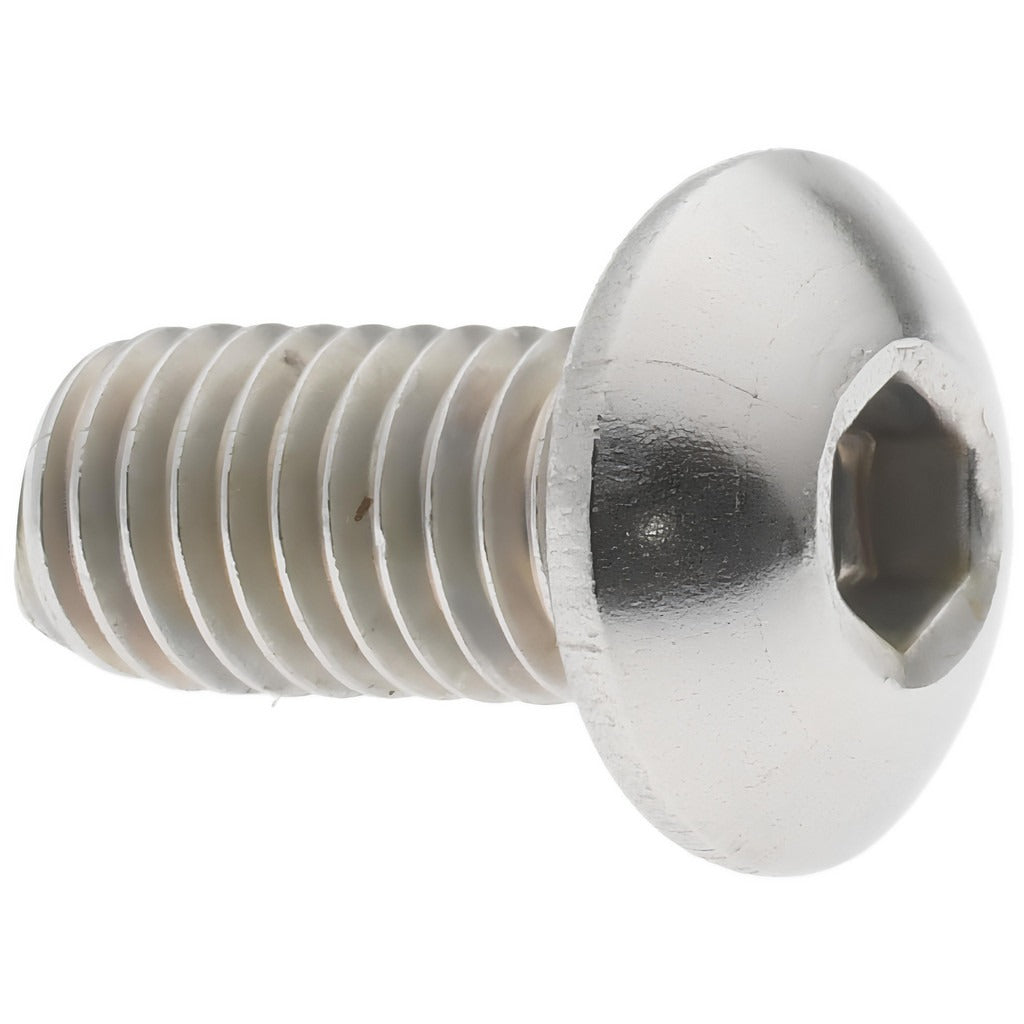

Value Collection MABS0050010CP M5x0.8 Button Cap Screw Ss

Product Description

The VALUE COLLECTION MABS0050010CP is a fully threaded M5x0.8 button socket cap screw manufactured from A2 (18-8) stainless steel with a bright, uncoated finish. Conforming to ANSI/ASME B18.3.4M and ISO 7380 standards, this metric fastener features a low-profile button head driven by a 3.00 mm hex socket. The 10 mm length under head and right-hand thread direction make it a standard choice for general mechanical assemblies where corrosion resistance and a clean head profile are required. Installation is performed with a hex key or Allen driver. This screw is sold individually but requires a minimum order quantity of 100 pieces.

This fastener is suited for light to medium-duty assemblies in industrial, marine, and general manufacturing environments where A2 stainless steel provides adequate corrosion resistance. The low-profile button head is commonly used in panel enclosures, brackets, and equipment frames where a flush or near-flush appearance is needed. Machinists, millwrights, and maintenance technicians regularly specify ISO 7380 button head screws for these applications.

Key Features

• M5x0.8 metric thread with right-hand direction, fully threaded
• Low-profile button head per ISO 7380 and ANSI/ASME B18.3.4M
• 3.00 mm hex socket drive for standard Allen key or hex bit
• A2 (18-8) stainless steel construction for corrosion resistance
• Bright, uncoated finish — no surface treatment to compromise thread tolerance
• 10 mm length under head for consistent grip depth in metric assemblies

Compatibility

Designed as a standard ISO 7380 M5x0.8 button socket cap screw suitable for metric threaded assemblies requiring an A2 stainless steel fastener with a button head profile.

Installation Notes

Install with a 3.00 mm hex key or matching hex bit driver. Ensure mating threads are clean and free of debris before driving. Do not exceed the rated torque range for M5 A2 stainless fasteners, as stainless steel is susceptible to galling — apply an appropriate anti-seize compound when joining stainless to stainless. Follow applicable mechanical assembly standards for the equipment being serviced.
