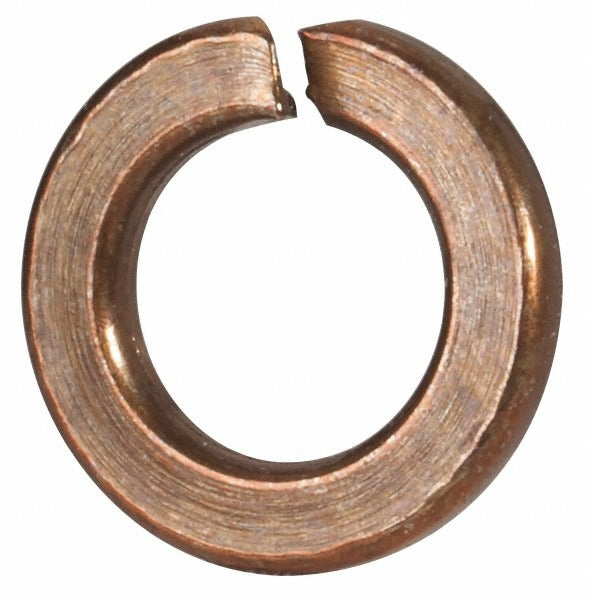

Value Collection LWIBR0-6-100BX No. 6 Split Lock Washer

Product Description

The VALUE COLLECTION LWIBR0-6-100BX is a No. 6 split lock washer made from silicon bronze, sold in a box of 100 pieces. Split lock washers are installed under fastener heads or nuts to resist loosening caused by vibration and torque relaxation. The helical split design bites into the bearing surface as the fastener is tightened, maintaining clamp load over time. Silicon bronze construction provides strong corrosion resistance in wet, marine, and chemically active environments where steel hardware would degrade. The inside diameter runs 0.141 to 0.148 inches, the outside diameter runs 0.250 to 0.266 inches, and the washer thickness is 0.031 inches. Electricians, plumbers, marine technicians, and general contractors use these in assemblies where corrosion resistance and vibration resistance are both required.

This washer is sized for No. 6 screws and fits standard No. 6 fastener shanks. Typical applications include electrical panel assemblies, marine hardware, wet-location conduit fittings, plumbing fixture mounting, and any bolted joint exposed to moisture, salt air, or mild chemicals. Silicon bronze is a preferred material in coastal construction, shipbuilding, and submerged or frequently wetted hardware where zinc-plated steel or stainless steel may not be specified. The box quantity of 100 supports production assembly work and service inventory stocking.

Key Features

• Silicon bronze construction resists corrosion in marine, wet, and chemical environments
• Helical split design maintains clamp load against vibration and torque relaxation
• Inside diameter 0.141 to 0.148 inches fits standard No. 6 screw shanks
• Outside diameter 0.250 to 0.266 inches with 0.031 inch thickness
• Box of 100 pieces supports production and service inventory needs

Compatibility

Designed for use with No. 6 screws in standard inch-measurement fastener assemblies where a split lock washer is specified.

Installation Notes

Install with the split ends contacting the bearing surface so the washer can bite into both the fastener head or nut and the mating surface as the joint is tightened. Power down or de-energize any electrical assembly before working on fasteners in live panels. Use hand tools appropriate for No. 6 fasteners and avoid over-torquing, which can flatten the helical split and reduce locking effectiveness. Follow applicable NEC, IPC, or project specifications for fastener material requirements in corrosive or wet locations.
