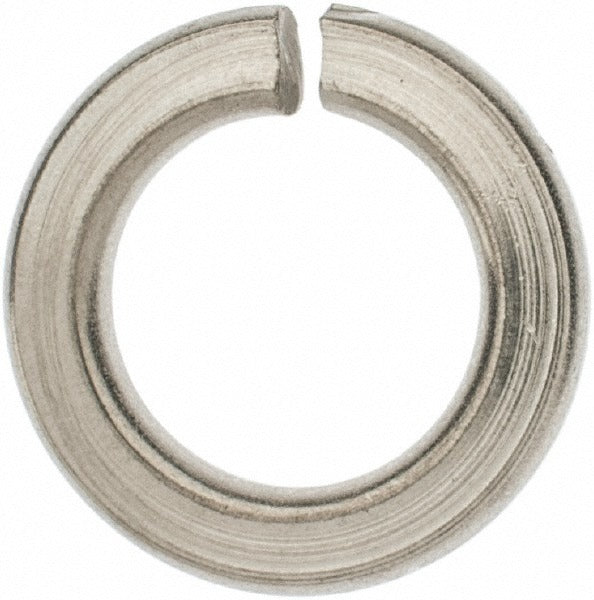

Value Collection LW7X01400-100BX M14 Split Lock Washer 100pk

Product Description

The VALUE COLLECTION LW7X01400-100BX is an M14 metric split lock washer manufactured from 18-8 austenitic stainless steel, Grade A2, conforming to DIN 127B. Split lock washers are used beneath fastener heads or nuts to apply a spring load that resists loosening caused by vibration and torque relaxation. This washer features a 14.2 mm minimum inside diameter, a 24.1 mm maximum outside diameter, and a 3 mm thickness. The package contains 100 washers and is sold as a single package quantity. Mechanical contractors, maintenance technicians, pipefitters, and millwrights working with M14 fastener assemblies in corrosion-prone or washdown environments are the primary installers.

This washer is suited for M14 bolts and screws in metric fastener assemblies across light industrial, commercial mechanical, and marine-adjacent applications where corrosion resistance is required. The 18-8 austenitic stainless steel composition provides resistance to rust and oxidation in wet or chemically active environments. The DIN 127B standard governs the dimensional and performance requirements for this washer type. Applications include equipment mounting, piping support structures, HVAC equipment frames, and general structural assembly where metric hardware is specified.

Key Features

• M14 screw size with 14.2 mm minimum inside diameter and 14.7 mm maximum inside diameter for consistent seating
• 24.1 mm maximum outside diameter provides adequate bearing surface under M14 fastener heads and nuts
• 3 mm thickness delivers reliable spring tension to resist vibration-induced loosening
• 18-8 austenitic stainless steel, Grade A2, resists corrosion in wet and chemically active environments
• Conforms to DIN 127B fastener standard for dimensional compliance in metric assemblies
• Sold in a 100-piece package for bench stock and service kit replenishment

Compatibility

Designed for use with M14 metric bolts and screws in assemblies requiring DIN 127B split lock washers. Verify inside diameter tolerance range of 14.2 to 14.7 mm against fastener shank diameter before installation.

Installation Notes

Install split lock washers between the fastener head or nut and the mating surface before final torque is applied. Ensure the fastener threads and seating surfaces are clean and free of debris prior to assembly. Stainless steel fastener components can be susceptible to galling during installation — apply an appropriate anti-seize compound when assembling stainless fasteners if required by the application. Follow applicable mechanical and structural codes for fastener torque and assembly requirements.
