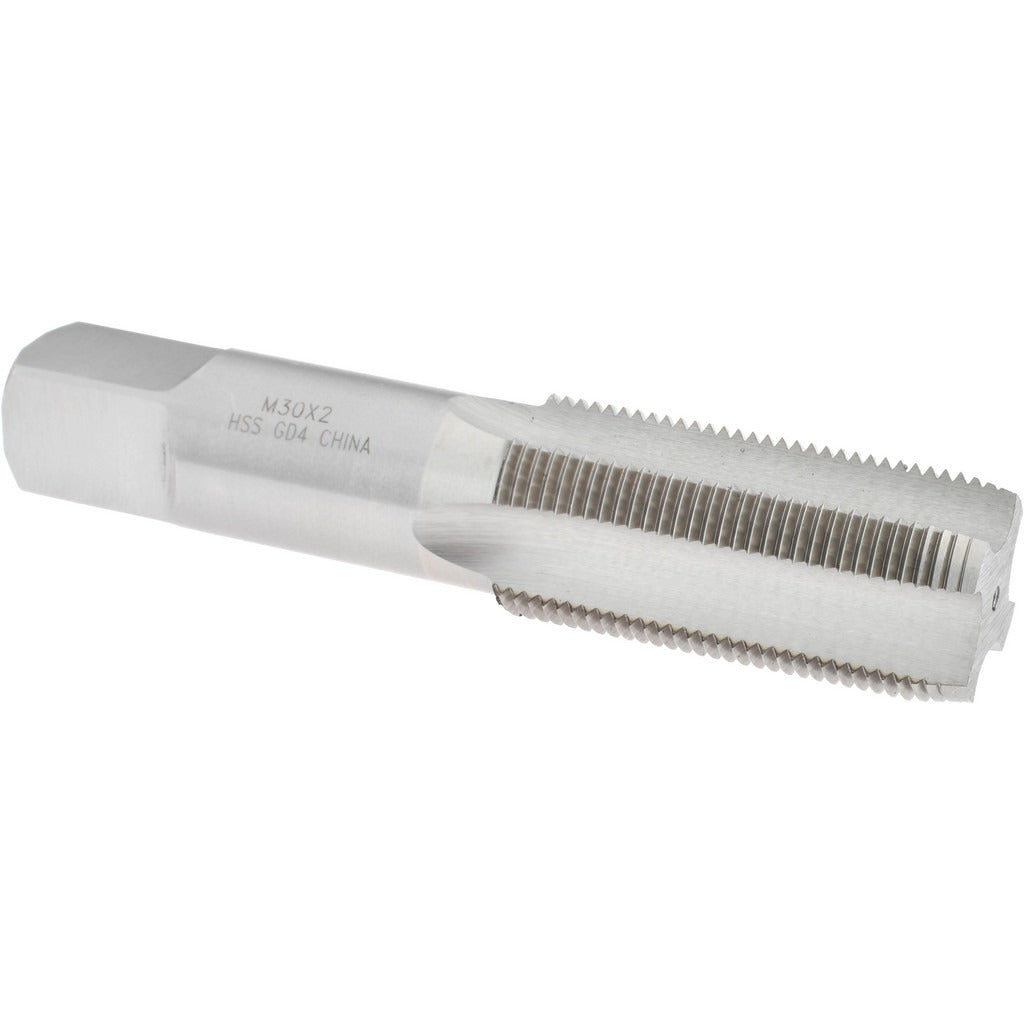

Value Collection JY9037375 Straight Flute Tap M30x2

Product Description

The VALUE COLLECTION JY9037375 is a straight flute tap designed to cut M30x2 metric fine internal threads in ferrous and non-ferrous materials. Built from high-speed steel (HSS) with a bright, uncoated finish, it delivers reliable performance in production and maintenance threading applications. The plug chamfer style provides a 3-5 thread lead-in, making it suited for through-hole threading. With an overall length of 5.4375 inches and a thread length of 2.5625 inches, this 4-flute tap is sized for use in standard machine tool setups or hand-tapping operations where M30x2 fine thread specification is required.

This tap is used in metalworking environments including machine shops, maintenance facilities, and industrial assembly operations. The M30x2 metric fine thread profile is common in precision fastening applications where a finer pitch than the standard M30x3.5 coarse is needed, such as in hydraulic fittings, bearing retainers, and precision machinery components. The right-hand thread direction and D4 thread limit make it appropriate for a range of material hardnesses typical in general machining work. Installation is performed by machinists and maintenance technicians using a standard tap wrench or machine tapping setup.

Key Features

• M30x2 metric fine thread specification for precise, fine-pitch internal threading
• High-speed steel (HSS) construction provides durability across a range of workpiece materials
• Plug chamfer with 3-5 thread lead-in suited for through-hole applications
• 4-flute design supports chip evacuation in standard cutting conditions
• D4 thread limit for controlled thread tolerance in general-purpose applications
• Bright, uncoated finish compatible with use alongside standard cutting fluids

Compatibility

Designed as an OEM-style replacement or standard tooling option for machine tool setups requiring M30x2 metric fine right-hand internal threads in through-hole applications.

Installation Notes

This tap is installed and operated by machinists or maintenance technicians using a tap wrench, tapping head, or CNC machine tool spindle. Ensure the workpiece is securely fixtured and the tap is properly aligned to the pre-drilled hole before applying cutting pressure. Use an appropriate cutting fluid for the workpiece material to extend tool life and improve thread finish. Follow standard shop safety practices and verify thread specification with a go/no-go gauge after tapping.
