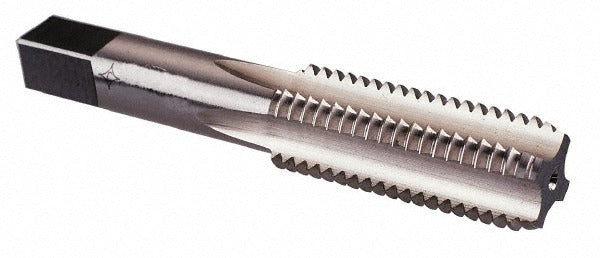

Value Collection JY9036997 Straight Flute Tap M35x2

Product Description

The VALUE COLLECTION JY9036997 is a straight flute tap designed for cutting M35x2 metric special internal threads in through-holes and blind holes where a bottoming chamfer is required. Manufactured from high-speed steel (HSS) with a bright, uncoated finish, this 4-flute tap is built for threading operations in machine shops, maintenance facilities, and industrial production environments. With a 3-inch thread length and an overall length of 6.0625 inches, it provides reach for deeper threading applications. The 6H class of fit and D7 thread limit ensure dimensional accuracy consistent with standard metric tolerance requirements. Right-hand cutting direction is standard. Licensed machinists and toolroom technicians are the primary users.

This tap is suited for creating M35x2 metric special threads in ferrous and non-ferrous materials where straight flute geometry provides chip control in through-hole or short blind-hole applications. The bottoming chamfer allows threading to within approximately 1-2 threads of a blind hole bottom, making it useful as the final tap in a tap sequence when maximum thread depth is required. Typical applications include repair threading, fixture fabrication, and production runs requiring metric special thread profiles.

Key Features

• M35x2 metric special thread form with 4 straight flutes for chip clearance
• Bottoming chamfer for threading close to the base of a blind hole
• High-speed steel construction for use across a broad range of workpiece materials
• Bright, uncoated finish suitable for use with cutting fluid in standard tapping operations
• 6H class of fit and D7 thread limit for consistent, measurable thread tolerance
• Right-hand cutting direction; no coolant-through feature

Compatibility

Designed as a direct-use tap for M35x2 metric special thread applications. Compatible with standard tap holders, tapping heads, and CNC machine tool holders sized for the shank diameter of this tool.

Installation Notes

Secure the tap in a properly sized tap holder or chuck before use. Always use appropriate cutting fluid for the workpiece material to extend tool life and improve thread finish. Ensure the workpiece is securely fixtured and the tap is aligned axially with the pilot hole before starting the thread. Power down the machine and lock out the spindle before changing or inspecting the tap per applicable shop safety procedures.
