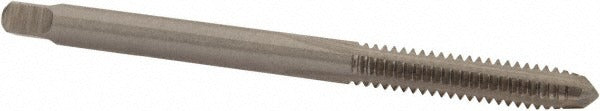

Value Collection JY8962508 Straight Flute Tap 6-32 Unc

Product Description

The VALUE COLLECTION JY8962508 is a straight flute tap designed for cutting internal threads in through-holes and semi-blind applications. Built from high-speed steel (HSS) with a bright, uncoated finish, it cuts a 6-32 UNC right-hand thread and measures 2 inches overall length. The plug chamfer style — typically 3 to 5 threads of lead — makes this tap suitable for starting threads in through-holes or holes with adequate chip clearance. The H11 thread limit indicates a controlled oversize tolerance of 0.0050 inches above nominal, which helps account for springback in tougher materials and ensures the finished thread accepts standard 6-32 fasteners. Machinists and maintenance technicians reach for this tap in general-purpose threading work on steel, aluminum, and similar materials.

This tap is used in machine shops, maintenance facilities, and production environments where 6-32 UNC threads are required. Common applications include tapping clearance holes in sheet metal assemblies, electronics enclosures, mounting brackets, and light structural components. It is suited for manual tapping with a tap wrench or use in low-speed machine tapping setups. The straight flute design is best suited for through-holes or materials that produce short, breakable chips rather than long stringy swarf.

Key Features

• 6-32 UNC thread form — standard unified coarse pitch for general fastener applications
• 3 straight flutes provide chip clearance in through-hole tapping operations
• Plug chamfer style with 3-5 thread lead for easy thread starting
• H11 thread limit with 0.0050-inch oversize for controlled fit on standard 6-32 fasteners
• High-speed steel construction for durability in a range of metalworking applications
• Bright, uncoated finish — compatible with cutting oils and standard tapping fluids

Compatibility

Designed as a standard replacement or supplemental tap for applications requiring 6-32 UNC right-hand internal threads in through-hole configurations.

Installation Notes

Tapping should be performed by a qualified machinist or maintenance technician using a properly sized tap wrench or tapping head. Secure the workpiece firmly and align the tap perpendicular to the hole before applying cutting pressure. Always use an appropriate cutting fluid or tapping oil to extend tool life and improve thread finish. Reverse the tap periodically to break chips and prevent tap breakage, especially in deeper holes.
