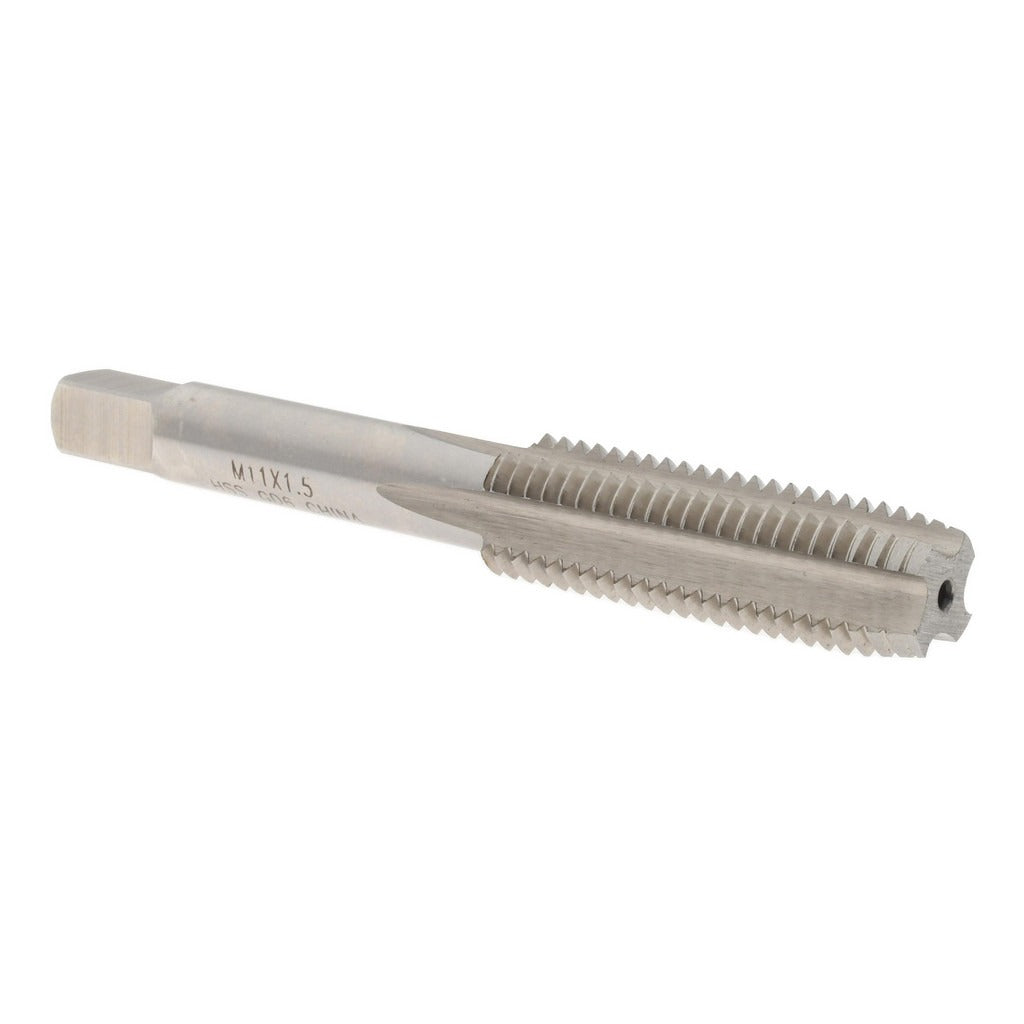

Value Collection JY74527326 Straight Flute Tap M11x1.5

Product Description

The VALUE COLLECTION JY74527326 is a straight flute tap designed for cutting M11x1.5 metric coarse internal threads in ferrous and non-ferrous materials. Manufactured from high-speed steel (HSS) with a bright uncoated finish, this tap delivers reliable thread-forming performance in general machining and maintenance applications. The plug chamfer style features a 3 to 5 thread lead-in, making it the standard choice for through-hole tapping where the tool can pass fully through the workpiece. With a D6 thread limit, it holds tight tolerances suitable for most commercial thread-fit requirements. Overall length is 3-5/32 inches with a thread length of 1-7/16 inches and a shank diameter of 0.323 inches.

This tap is suited for manual tapping with a tap wrench, machine tapping on a drill press, or CNC applications at moderate feeds and speeds. The 4-flute straight flute geometry evacuates chips effectively in shorter chipping materials and provides stable cutting action. It is a practical choice for machine shops, maintenance facilities, and toolrooms that need a dependable metric tap for repair work, fixture building, or production threading of M11x1.5 fastener holes.

Key Features

• M11x1.5 metric coarse thread form for standard metric fastener compatibility
• Plug chamfer with 3 to 5 thread lead-in for through-hole tapping applications
• 4-flute straight flute design provides stable cutting and chip evacuation in short-chipping materials
• High-speed steel construction offers good wear resistance across a range of work materials
• D6 thread limit holds consistent tolerance for commercial-grade thread fits
• Bright uncoated finish suitable for use with standard cutting fluids

Compatibility

Designed as a standard replacement or stocking tap for any application requiring M11x1.5 metric coarse internal threads. Compatible with tap wrenches, tapping heads, and machine spindles accepting a 0.323-inch shank diameter.

Installation Notes

Always secure the workpiece and use the appropriate cutting fluid for the material being tapped to extend tool life and improve thread quality. Power down or de-energize any machine spindle before mounting or changing the tap. Align the tap perpendicular to the workpiece surface at the start of the cut to avoid cross-threading or tap breakage. Reverse periodically when hand tapping to break chips and clear the flutes.
