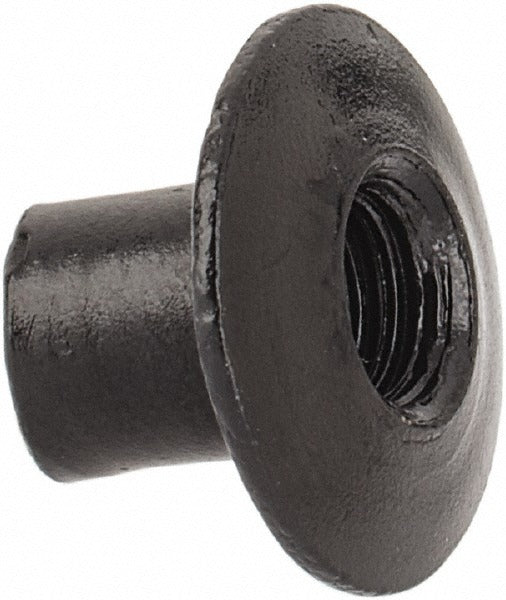

Value Collection IEH4304-BK Sex Bolt Binding Post 8-32

Product Description

The VALUE COLLECTION IEH4304-BK is an aluminum sex bolt binding post with a slotted truss head and black anodized finish. This hardware fastener consists of a barrel body threaded to 8-32 UNC standards with a 0.25-inch thread length and an overall length of 0.34 inches. The truss head measures 0.4063 inches in diameter, providing a broad bearing surface for flush or panel-mount applications. Installers use these binding posts to join layered materials such as leather goods, binders, signage, books, menus, or panel assemblies where a through-bolt with a decorative low-profile head is required. The black anodized finish provides corrosion resistance and a clean, uniform appearance.

These sex bolt binding posts are suited for light-duty assembly work in commercial fabrication, signage production, bookbinding, and general panel fastening. The 8-32 UNC thread is a widely used coarse-thread standard, making mating screws easy to source. Each post is sold individually, with a minimum order quantity of 100 units, making this part appropriate for production runs or bulk hardware replenishment rather than single-unit repair jobs.

Key Features

• 8-32 UNC thread standard for broad compatibility with standard mating screws
• 0.25-inch thread length with 0.34-inch overall barrel length
• Slotted truss head at 0.4063 inches diameter for wide bearing surface
• Black anodized aluminum construction resists corrosion and wear
• Lightweight at approximately 0.001 pounds per unit

Compatibility

Designed as a standard 8-32 UNC aluminum sex bolt binding post compatible with mating 8-32 threaded screws used in panel assembly, binder, signage, and general fastening applications.

Installation Notes

Installation requires a flat-blade screwdriver matched to the slotted drive on the truss head. Ensure mating panels or substrates are drilled to the correct clearance diameter for the barrel before assembly. Hand-tighten the mating screw into the barrel to avoid stripping the aluminum threads. No power tools are recommended for final tightening given the fine thread engagement length and aluminum material.
