Value Collection IDP416-156-875-F09 Precision Dowel Pin

Product Description

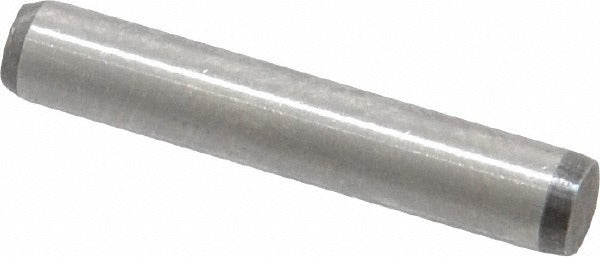

The VALUE COLLECTION IDP416-156-875-F09 is a precision dowel pin machined from Grade 416 stainless steel with a passivated finish. It measures 5/32 inch in diameter and 7/8 inch in overall length, with a diameter tolerance held to 0.0000 to 0.0002 inch for close-fit applications. The beveled end eases insertion into pre-drilled holes. Hardness runs 36-42 HRC, giving the pin solid resistance to wear and shear forces. Machinists, tool-and-die shops, and maintenance technicians use this pin wherever tight positional accuracy and corrosion resistance are both required. It conforms to ASTM A380-88 for passivation of stainless steel parts.

This dowel pin is suited to precision assembly and fixturing work in industrial, commercial, and light manufacturing environments. Typical applications include aligning mold halves, fixture plates, machine tool components, and jig assemblies where repeatable part location is critical. The 416 stainless steel base material offers good machinability alongside moderate corrosion resistance, making it a practical choice for tooling and equipment that sees exposure to mild chemicals or humidity. Minimum order quantity is 25 units; this listing represents a single-piece package quantity.

Key Features

• Grade 416 stainless steel construction with passivated finish per ASTM A380-88
• Diameter held to a tolerance of 0.0000 to 0.0002 inch for precision fit
• Hardness of 36-42 HRC for wear and shear resistance
• Beveled end for easier insertion into blind or through holes
• 5/32 inch diameter by 7/8 inch overall length for compact alignment applications

Compatibility

Designed as a precision dowel pin for use in fixtures, jigs, molds, and machine tool assemblies requiring a 5/32 inch diameter locating pin in Grade 416 stainless steel.

Installation Notes

Installation is typically performed by machinists or maintenance technicians using a press, arbor press, or soft-faced mallet to seat the pin without damaging the finish or altering the bore. The receiving hole should be reamed to the appropriate tolerance class before installation. Always verify hole depth and alignment before pressing the pin to avoid binding or distortion of the mating component.
