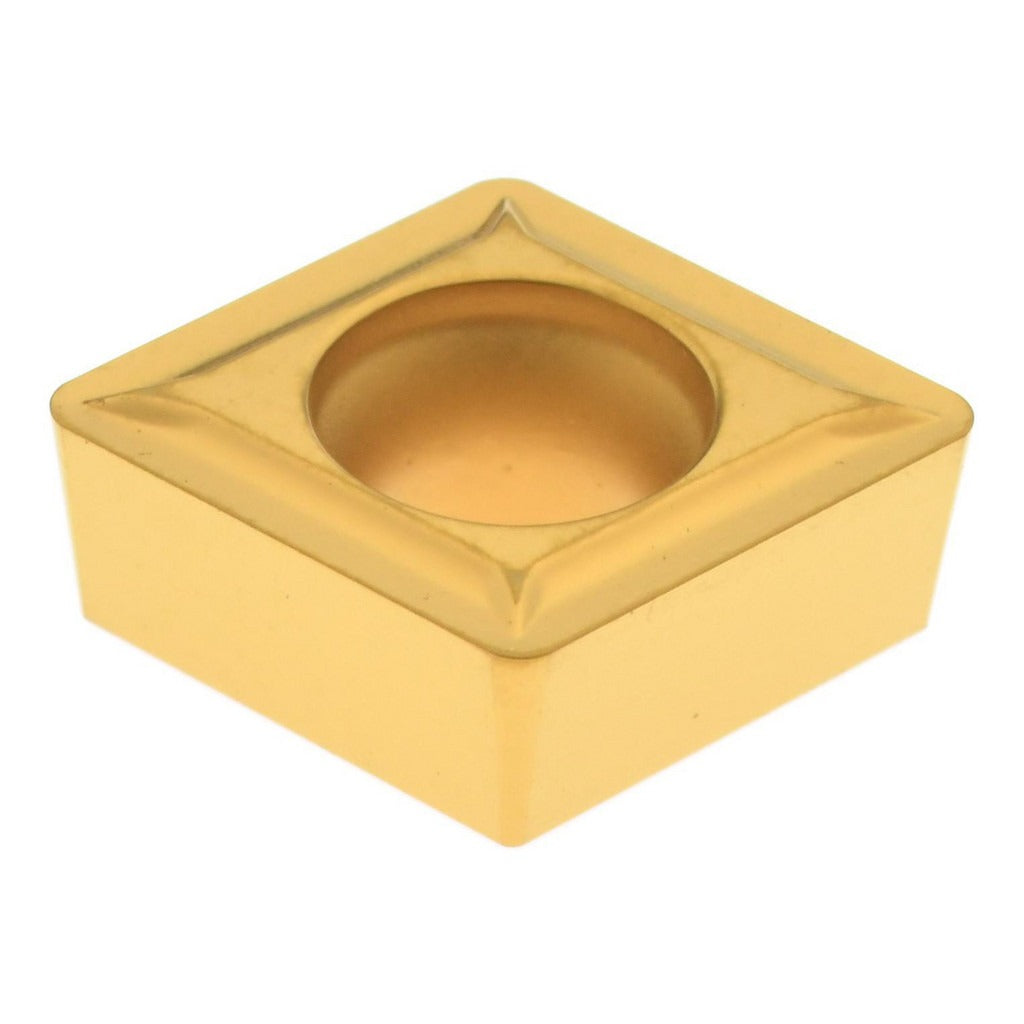

Value Collection ICP76512E Turning Insert CCMT32.52 TCN55

Product Description

The VALUE COLLECTION ICP76512E is a solid carbide turning insert designed for precision metal cutting on CNC lathes and manual turning centers. Manufactured to the ANSI insert code CCMT32.52 (ISO: CCMT09T308), this insert features an 80-degree diamond (rhombic) shape with a positive side clearance and a 7-degree relief angle. The grade TCN55 carbide substrate is finished with a TiN (titanium nitride) coating, providing enhanced wear resistance and surface lubricity during cutting. With a 3/8-inch inscribed circle and a 1/32-inch corner radius, this insert is suited for finishing and light semi-finish turning passes where dimensional accuracy is critical.

This insert is appropriate for turning operations on ferrous materials, including steels and stainless steels, consistent with its primary workpiece material codes M and P. It is held in place by a screw-style clamping method, which is standard on CCMT-style toolholders used in both production and job-shop environments. Machinists and CNC operators working on shaft, bore, and face turning applications will find this insert compatible with standard CCMT insert pockets. Minimum order quantity is 10 inserts; each package contains 1 insert.

Key Features

• Solid carbide construction with TiN coating for improved wear resistance and tool life
• 80-degree diamond (rhombic) insert shape provides a strong cutting edge for a range of turning passes
• Positive side clearance reduces cutting forces and minimizes heat buildup at the workpiece
• 1/32-inch corner radius suited for finishing and light semi-finish turning operations
• Screw-clamping insert style for secure, repeatable seating in CCMT-compatible toolholders
• T-style chip breaker geometry assists with chip control during continuous turning

Compatibility

Designed for use in CCMT-style screw-clamp toolholders accepting a 3/8-inch inscribed circle insert with ANSI code CCMT32.52 or ISO code CCMT09T308. Suitable for steels and stainless steels classified under workpiece material codes M and P.

Installation Notes

Installation is performed by a machinist or CNC operator. Power down and lock out the machine spindle before changing inserts. Seat the insert fully and flat in the toolholder pocket before tightening the clamping screw; partial seating can cause insert fracture or poor surface finish. Verify tool offset and edge height after each insert index or replacement.
