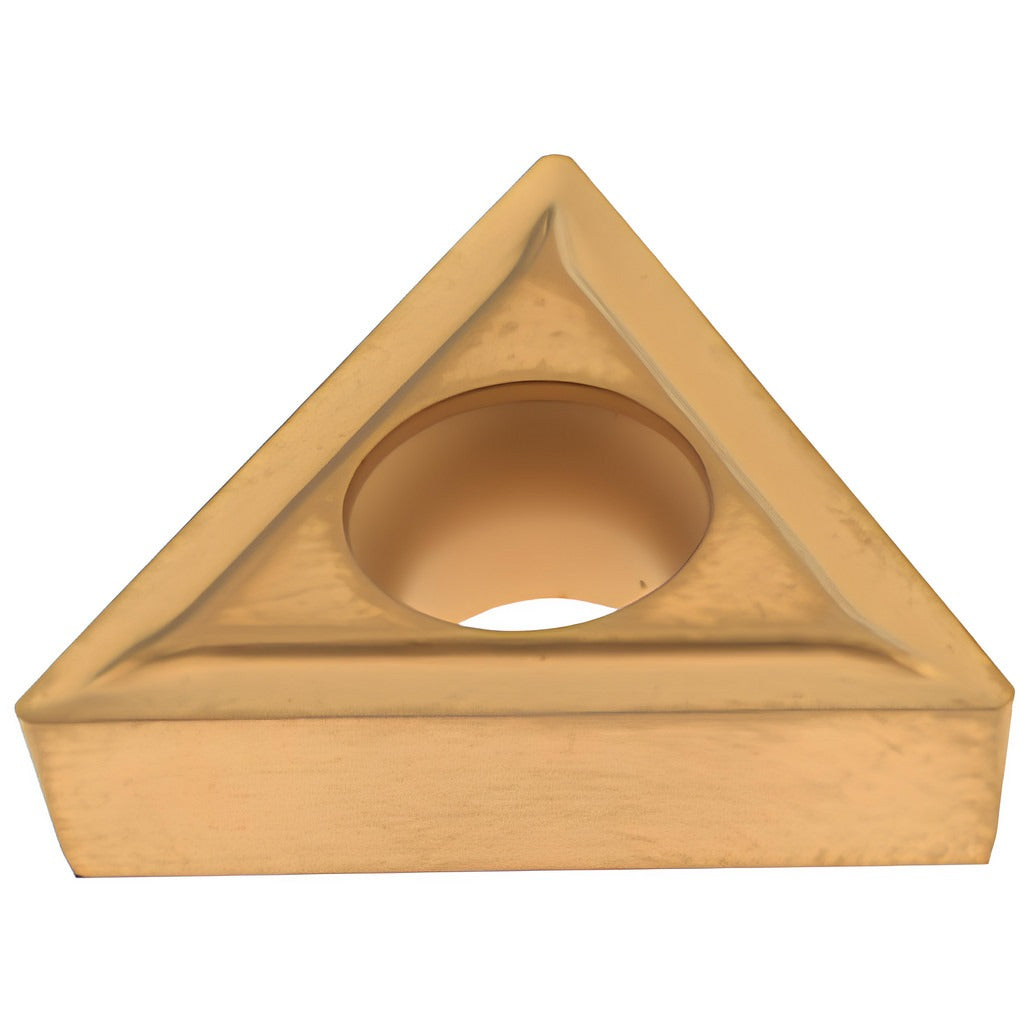

Value Collection ICP65060A Turning Insert TCMT32.51 TCN55

Product Description

The VALUE COLLECTION ICP65060A is a solid carbide turning insert designed for precision metal cutting on CNC lathes and manual turning centers. Manufactured to ANSI insert code TCMT32.51 and ISO code TCMT16T304, this insert features a 60-degree triangular shape with a positive side clearance and a 7-degree relief angle. The TiN (titanium nitride) coating improves surface hardness and wear resistance, extending tool life in moderate-duty turning operations. With a 3/8-inch inscribed circle and a 1/64-inch corner radius, it delivers consistent chip control and surface finish on a range of workpiece materials. Licensed machinists and CNC operators are the primary installers of this insert type.

This insert is suited for turning operations on steel and stainless steel workpiece materials, as indicated by the primary workpiece material codes M and P. It is held in place by a screw-type clamping method, compatible with standard TCMT-style toolholders. Typical applications include external turning, facing, and light profiling passes in both production and job-shop environments. The TCN55 grade designation indicates suitability for general-purpose steel cutting at moderate cutting speeds and feeds.

Key Features

• Solid carbide substrate with TiN coating for improved wear resistance and tool life
• ANSI insert code TCMT32.51 and ISO code TCMT16T304 for straightforward toolholder matching
• 60-degree triangular insert shape provides three usable cutting edges per insert
• Positive side clearance geometry reduces cutting forces and heat generation
• Screw-type insert holding method for secure, repeatable seating in the toolholder
• T-style chip breaker geometry for controlled chip evacuation during turning

Compatibility

Designed as an OEM-style replacement or direct-use insert for TCMT-style screw-on turning toolholders accepting ANSI size code 32.51 or ISO size code 16T304 inserts.

Installation Notes

Insert replacement and toolholder setup should be performed by a qualified machinist or CNC operator with the machine fully powered down and the spindle locked. Use the appropriate Torx or hex-drive screw and insert clamp hardware specified by the toolholder manufacturer when seating the insert. Inspect the toolholder pocket for wear or damage before installing a new insert. Handle carbide inserts carefully to avoid chipping the cutting edges prior to use.
