Value Collection ICP65010H Turning Insert SCMT32.52 TCN55

Product Description

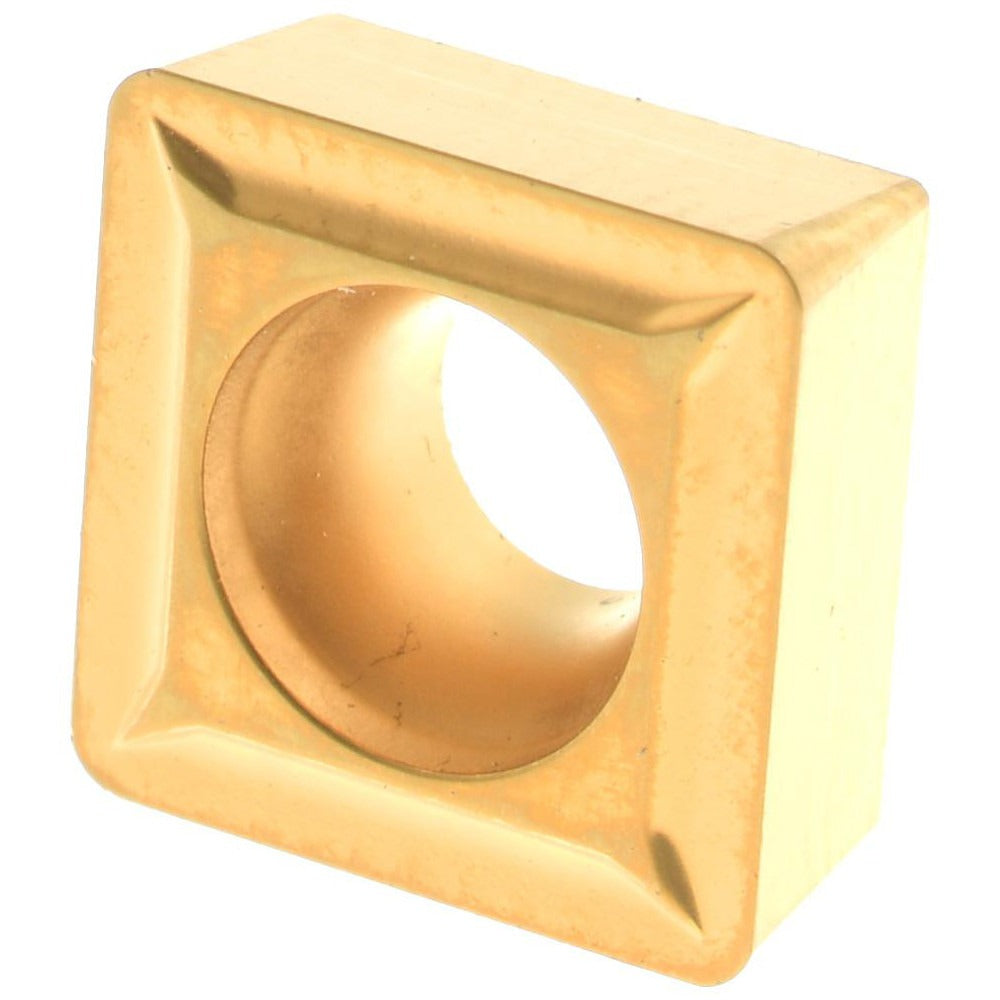

The VALUE COLLECTION ICP65010H is a solid carbide turning insert designed for precision metal cutting operations on CNC lathes and manual turning centers. Carrying the ANSI insert code SCMT32.52 and ISO insert code SCMT09T308, this insert features a TiN (titanium nitride) coating over a carbide substrate graded TCN55. The square insert shape provides four usable cutting edges, and the positive side clearance reduces cutting forces during turning. With a 3/8-inch inscribed circle and a 1/32-inch corner radius, it is suited for general-purpose external and internal turning passes where controlled chip formation and wear resistance are required.

This insert is intended for use in screw-type toolholders compatible with SCMT-style seating. It is primarily applied in turning operations on steel and stainless steel workpiece materials, as indicated by primary workpiece material codes M and P. Typical applications include OD turning, facing, and light profiling on ferrous alloys in production machining environments. It is sold individually but must be ordered in multiples of 10.

Key Features

• TiN coating on carbide grade TCN55 substrate for improved wear resistance on ferrous materials
• Square insert shape (S) with four usable cutting edges maximizes insert utilization
• Positive side clearance reduces cutting force and heat generation at the cutting edge
• Screw-type insert holding method for secure, repeatable seating in compatible toolholders
• 1/32-inch corner radius suitable for general-purpose turning with moderate surface finish requirements
• ANSI size code 32.52 and ISO size code 09T308 for straightforward toolholder cross-referencing

Compatibility

Designed for use in SCMT-style screw-on toolholders that accept a square insert with a 0.173-inch hole diameter and SCMT32.52 (ISO 09T308) seating geometry.

Installation Notes

Installation should be performed by a qualified machinist or CNC tooling technician. Power down and lock out the machine spindle before indexing or replacing inserts. Use the appropriate torx or hex key to secure the clamping screw to the toolholder manufacturer's recommended procedure — do not overtighten, as carbide inserts are brittle and can crack under excessive clamping force. Inspect the toolholder pocket for debris or wear before seating a new insert.
