Value Collection ICP29910A Milling Insert SPCN1203ZR

Product Description

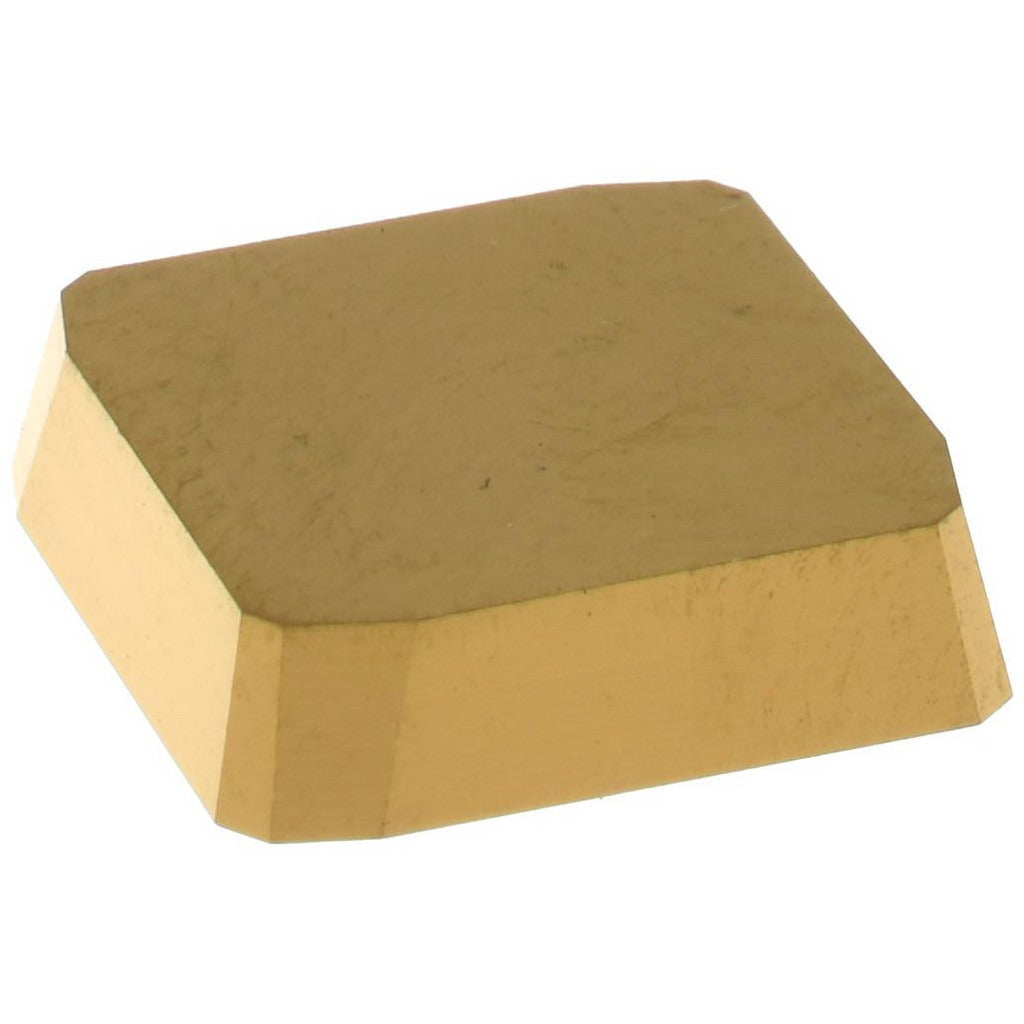

The VALUE COLLECTION ICP29910A is a solid carbide milling insert designed for precision metal removal in milling applications. Carrying ISO code SPCN1203ZR and manufacturer grade ICP55M, this insert features a square shape with a 90-degree included angle and an 11-degree relief angle. The solid carbide substrate is finished with a TiN (titanium nitride) coating to extend tool life and reduce friction at the cutting edge. At 0.125 inches thick with a 0.5-inch inscribed circle, it fits standard milling toolholders sized for SPC-style inserts. It is sold individually but requires a minimum order of 10 pieces.

This insert is suited for milling operations on ferrous and non-ferrous materials where a C5 material grade carbide is appropriate. The SPC insert style and SPCN1203ZR ISO designation make it a direct fit for compatible insert-style milling cutters used in production machining, job shop work, and maintenance machining environments. Machinists and tool crib personnel working with modular milling systems will find this insert compatible with toolholders accepting the SPC seat geometry.

Key Features

• Solid carbide construction rated to material grade C5 for wear resistance in milling
• TiN coating reduces cutting-edge wear and improves chip evacuation
• Square insert shape with 90-degree included angle for versatile milling geometries
• 11-degree relief angle minimizes rubbing and extends edge life
• ISO code SPCN1203ZR ensures cross-reference compatibility with standard toolholder catalogs
• Lightweight at approximately 0.0015 pounds per insert

Compatibility

Designed for use in milling toolholders that accept SPC-style inserts with the SPCN1203ZR ISO seat designation. Consult your toolholder manufacturer documentation to confirm fitment before installation.

Installation Notes

Milling inserts should be seated and torqued by a qualified machinist following the toolholder manufacturer's clamping specifications. Always power down and lock out the machine spindle before changing inserts. Inspect the insert pocket and clamping screw for wear or debris before seating a new insert. Handle carbide inserts with care, as the material is brittle and susceptible to chipping from impact.
