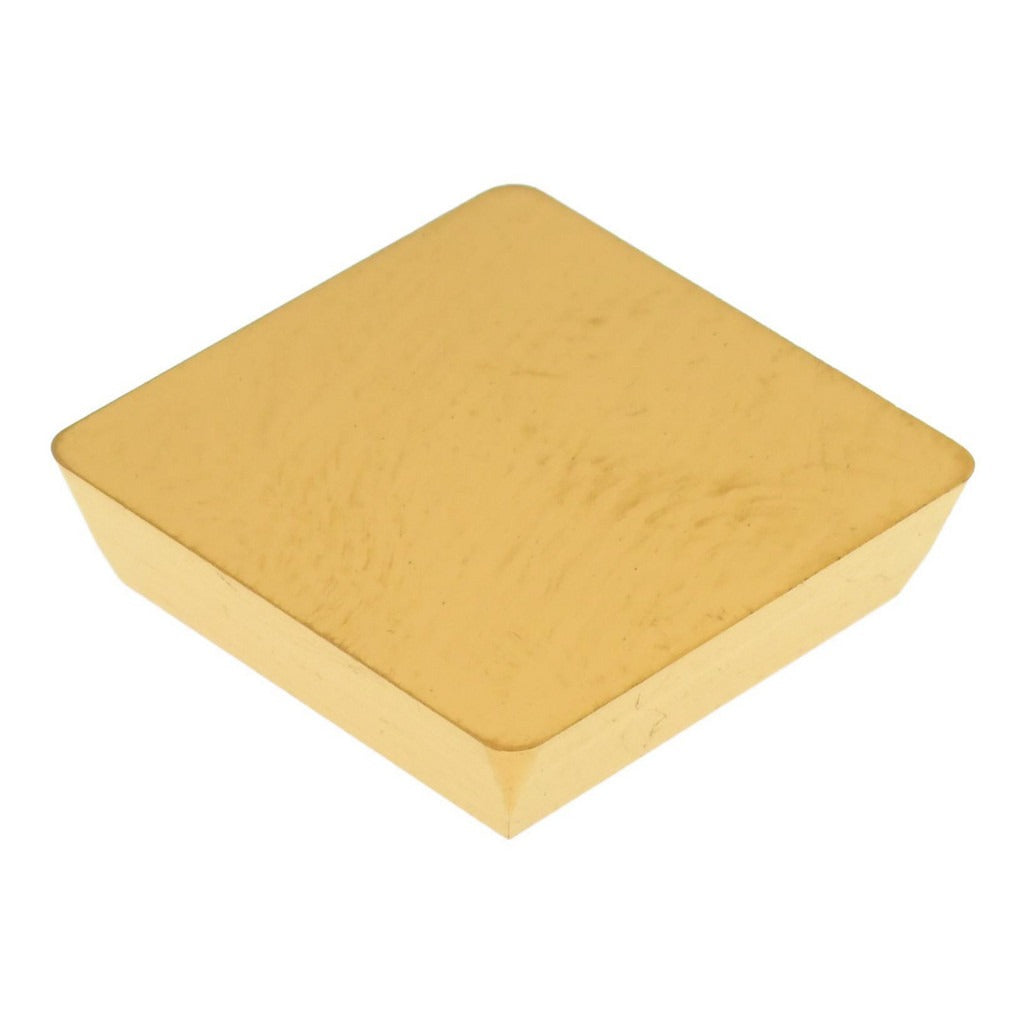

Value Collection ICP11005E Milling Insert SECN120308 Carbide

Product Description

The VALUE COLLECTION ICP11005E is a solid carbide milling insert designed for use in precision metal-cutting operations. Manufactured to ISO code SECN120308, this insert features a square shape with a 90-degree included angle and a 20-degree relief angle. The titanium nitride (TiN) coating improves surface hardness and wear resistance, extending tool life in demanding milling applications. At 0.125 inches thick with a 0.5-inch inscribed circle and a 0.03125-inch corner radius, the insert delivers consistent geometry for reliable chip control and repeatable cutting performance. It carries a C5 material grade, making it suitable for a range of ferrous and non-ferrous workpiece materials.

This insert is used in indexable milling toolholders that accept SEC-style square inserts. Typical applications include face milling, shoulder milling, and general-purpose material removal on CNC machining centers and manual knee mills. The SECN120308 geometry is a widely adopted standard in production and job-shop environments where consistent insert indexing and repeatable depth-of-cut control are required. Machinists and tooling specialists working in aerospace, general manufacturing, and fabrication shops will recognize this insert style as a dependable option for medium to heavy milling work.

Key Features

• Solid carbide construction with TiN coating for extended wear life
• Square insert shape with 90-degree included angle for versatile milling applications
• 20-degree relief angle supports positive cutting action and reduced cutting forces
• 0.03125-inch corner radius for controlled chip formation and edge strength
• ISO code SECN120308 for straightforward toolholder cross-referencing
• C5 material grade suitable for a broad range of workpiece materials

Compatibility

Designed as a replacement or equivalent for SEC-style square indexable milling insert seats. Confirm toolholder acceptance of the SECN120308 insert geometry and inscribed circle dimension before ordering.

Installation Notes

Insert seating and clamping should be performed by a qualified machinist or tooling technician following the toolholder manufacturer's torque specifications for the clamping screw. Ensure the machine spindle is fully stopped and the machine is locked out before indexing or replacing inserts. Inspect the insert pocket and clamping components for debris or damage prior to seating a new insert. Proper insert orientation and full seating in the pocket are critical to achieving accurate tool geometry and preventing premature edge failure.
