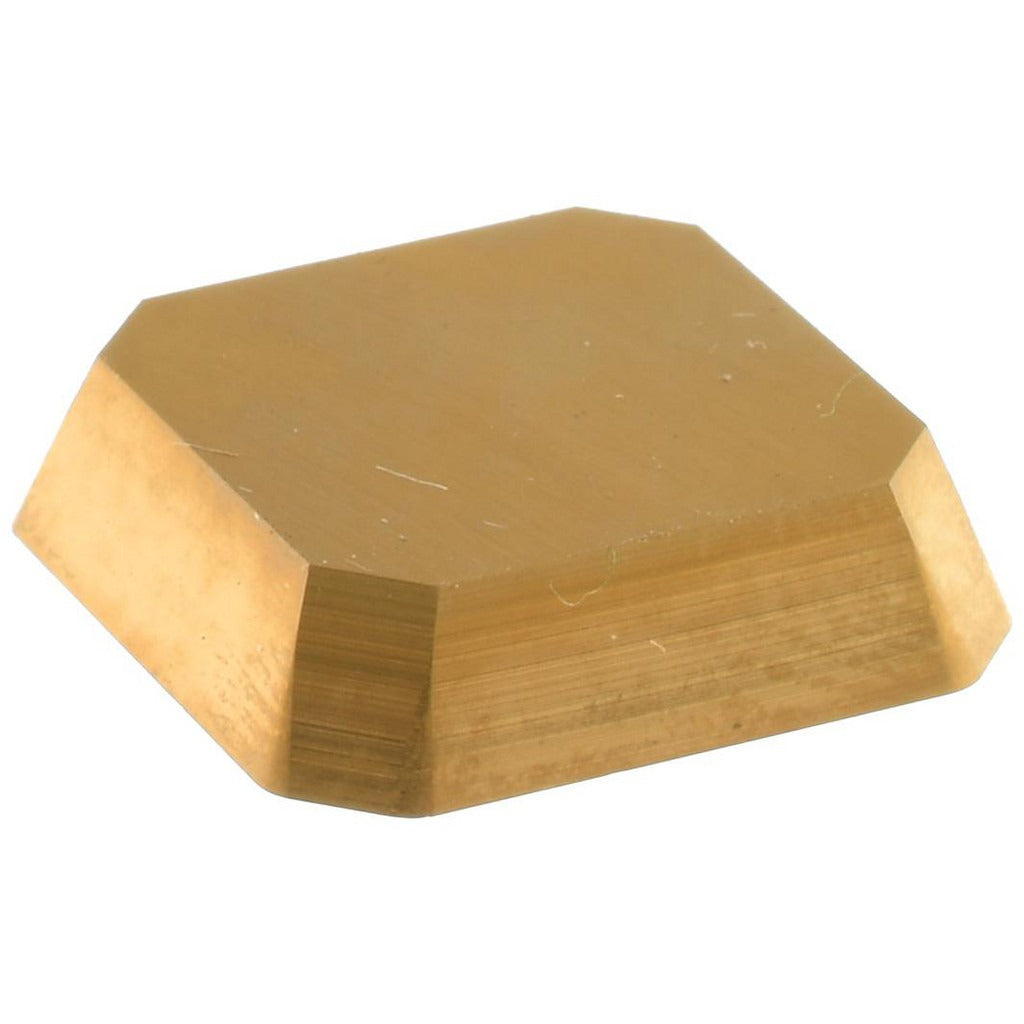

Value Collection ICP10030B SEAN1203FN Milling Insert

Product Description

The VALUE COLLECTION ICP10030B is a solid carbide milling insert designed for metal removal operations in milling applications. Finished with a TiN (titanium nitride) coating, this insert offers improved surface hardness and wear resistance compared to uncoated carbide. It carries the ISO code SEAN1203FN and is manufactured to the ICP55M grade, placing it in the C5 material grade category. The square insert shape with a 90-degree included angle and 20-degree relief angle suits a range of face milling and shoulder milling tool holders. Neutral hand orientation means it can seat in either right- or left-hand configurations depending on the holder. Licensed machinists and tooling technicians are the typical end users for this insert.

This insert is suited for milling operations on ferrous and non-ferrous materials where a C5-grade carbide performs reliably. The SEAN style designation identifies the seating and geometry requirements for compatible tool holders. The 1/2-inch inscribed circle and 1/8-inch thickness are standard dimensional references used when matching inserts to existing tooling systems. It is sold individually per package, with a minimum order quantity of 10 pieces, making it appropriate for shop restocking or tooling room inventory builds.

Key Features

• Solid carbide construction in C5 material grade for hardness and thermal resistance
• TiN coating improves wear resistance and extends edge life
• Square insert shape with 90-degree included angle for versatile milling geometry
• 20-degree relief angle reduces cutting forces and edge friction
• Neutral hand orientation compatible with both right- and left-hand tool holders
• ISO code SEAN1203FN for precise tooling system matching

Compatibility

Designed for use in SEAN-style milling tool holders that accept a square insert with a 1/2-inch inscribed circle and 1/8-inch thickness. Verify holder geometry and seating requirements against the SEAN1203FN ISO designation before ordering.

Installation Notes

Insert seating and torque procedures should follow the tool holder manufacturer specifications. Always power down and lock out the spindle before changing inserts. Use the appropriate insert key or torque wrench to secure the clamping screw — do not overtighten by hand. Inspect the insert pocket and clamping components for wear or debris before seating a new insert.
