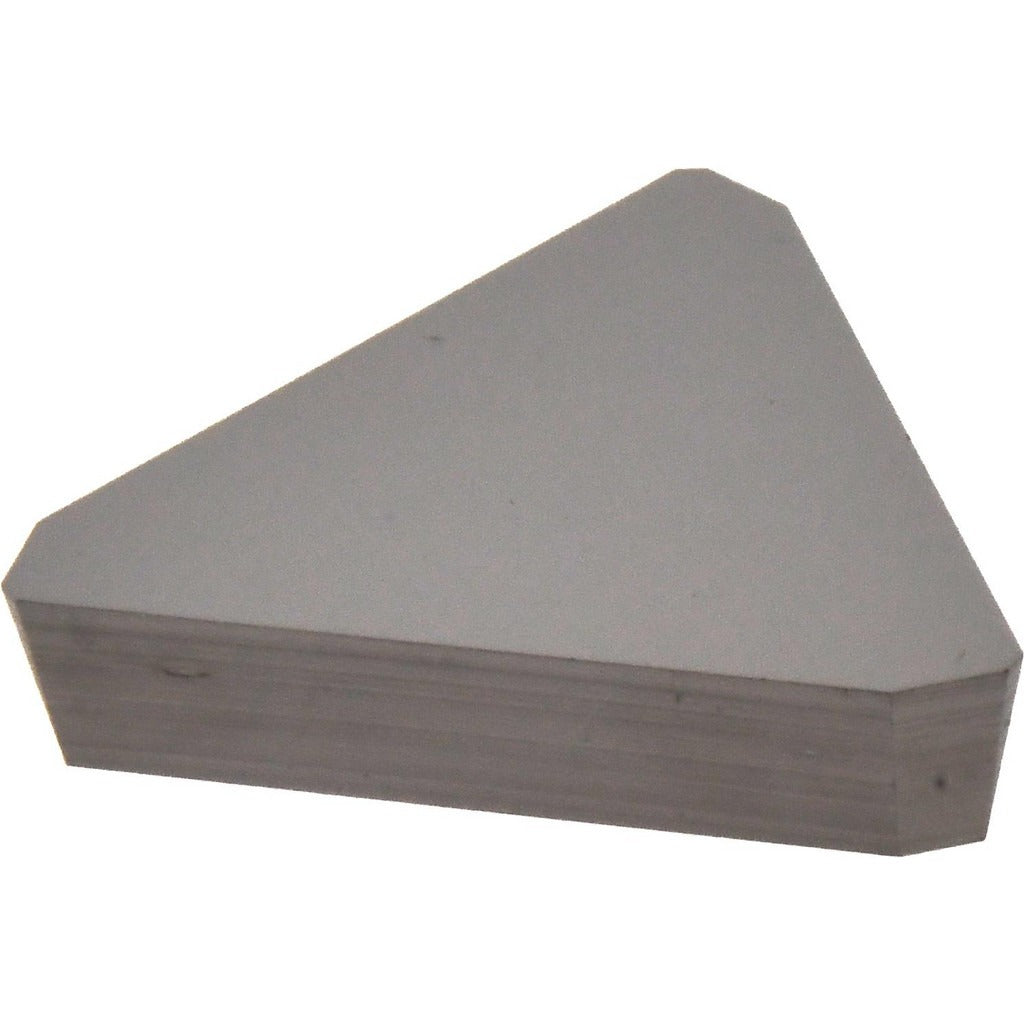

Value Collection ICC30310E Milling Insert Solid Carbide I55

Product Description

The VALUE COLLECTION ICC30310E is a solid carbide milling insert designed for metal cutting and milling operations in machining environments. Classified under ISO code TPCN1603P3R, this insert features a triangular shape with a bright uncoated finish and an 11-degree relief angle. The 0.047-inch corner radius and 3/8-inch inscribed circle diameter make it suited for light to medium milling passes. Manufactured to grade I55 with a material grade of C5/C6, it delivers consistent edge performance across a range of ferrous and non-ferrous workpiece materials. Machinists and toolroom technicians install these inserts as indexable cutting edges in compatible milling toolholders.

This insert is appropriate for use in CNC milling machines and manual milling equipment where indexable carbide tooling is required. The triangular TPC insert style offers multiple cutting edges per insert, reducing per-edge tooling cost in production and job-shop environments. It is well-suited for face milling, shoulder milling, and general-purpose material removal operations where an uncoated carbide grade in the C5/C6 range is specified. These inserts are sold individually but require a minimum order quantity of 10 units.

Key Features

• Solid carbide construction in manufacturer grade I55 for consistent edge hardness and wear resistance
• Triangular TPC insert shape provides multiple indexable cutting edges per insert
• Bright/uncoated finish for use in applications where coating is not required or preferred
• 0.047-inch corner radius for controlled edge geometry on light to medium cuts
• 11-degree relief angle reduces cutting forces and flank wear in milling applications
• 3/8-inch inscribed circle for compatibility with standard TPC-style milling toolholders

Compatibility

Designed as a direct-fit replacement for TPCN1603P3R-style indexable milling inserts used in TPC-style toolholders accepting a 3/8-inch inscribed circle insert with an 11-degree relief angle.

Installation Notes

Installation is performed by qualified machinists or toolroom technicians following machine lockout/tagout procedures before changing inserts. Inserts should be seated fully and evenly in the toolholder pocket, and the clamping screw torqued according to the toolholder manufacturer specifications. Inspect the insert pocket for chips or debris before seating a new insert. Never operate a milling cutter with a loose or improperly seated insert.
