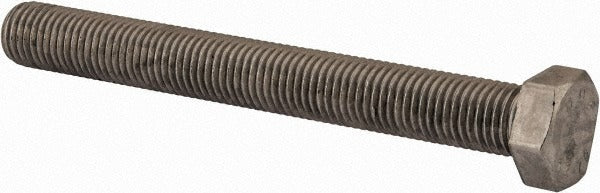

Value Collection HC3X16140-005BX M16 Hex Cap Screw Din 933

Product Description

The Value Collection HC3X16140-005BX is an M16 x 2.00 x 140 mm hex head cap screw manufactured from 18-8 austenitic Grade A2 stainless steel with a bright, uncoated finish. Fully threaded along its 140 mm length under head, it meets DIN 933 standards and is driven with a 24 mm hex. The stainless steel construction provides corrosion resistance suited to wet, outdoor, or chemically exposed environments. Machinists, millwrights, pipefitters, and maintenance mechanics typically install this fastener in structural assemblies, equipment mounting, and piping support applications where metric threading and corrosion resistance are required.

This cap screw is appropriate for use in industrial, commercial, and trade applications calling for metric M16 hardware. Its fully threaded body makes it suitable for through-bolting into a nut or threaded insert where full thread engagement along the fastener length is needed. The DIN 933 standard designation confirms dimensional conformity, making it a reliable drop-in choice wherever that standard is called out in engineering or installation documentation.

Key Features

• M16 x 2.00 metric thread with 140 mm length under head
• Fully threaded per DIN 933 standard
• 18-8 austenitic Grade A2 stainless steel for corrosion resistance
• Bright, uncoated finish with no added surface treatment
• 24 mm hex drive size for standard wrenching

Compatibility

Designed as a standard metric replacement or new-installation fastener conforming to DIN 933, compatible with M16 x 2.00 threaded nuts, inserts, and tapped holes requiring a fully threaded hex head cap screw.

Installation Notes

Installation is performed by qualified mechanical trades using a 24 mm open-end, box, or socket wrench. Stainless steel fasteners are susceptible to galling — apply an appropriate anti-seize compound to the threads before installation to reduce the risk of thread seizure. Torque to the value specified in the applicable engineering drawing or equipment service documentation. De-energize and lock out equipment before working on any assembly that requires fastener removal or replacement.
