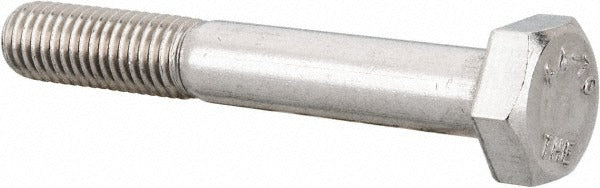

Value Collection HC1XX10070-010BX M10 Hex Cap Screw 316 Ss

Product Description

The VALUE COLLECTION HC1XX10070-010BX is a metric hex head cap screw designed for fastening applications that demand corrosion resistance and mechanical reliability. Manufactured from Grade 316 austenitic stainless steel (A4 grade), it delivers strong resistance to chlorides, acids, and marine environments. The screw measures M10 x 1.50 thread pitch with a 70 mm length under head and features partial threading conforming to DIN 931 standards. The 17 mm hex drive allows installation with standard metric wrenches or sockets. This fastener is installed by millwrights, pipefitters, plumbers, and mechanical contractors across a range of industrial and commercial applications.

This screw is suited for use in wet, corrosive, or outdoor environments where carbon steel fasteners are not appropriate. Common applications include pipe flange assemblies, pump housings, marine hardware, food processing equipment, and chemical handling systems. The DIN 931 partial-thread profile provides a gripable shank section useful where bearing surfaces or precise bolt alignment are required. Minimum order quantity is 10 pieces; parts are sold individually per package.

Key Features

• Grade 316 austenitic stainless steel (A4) for high corrosion resistance in chloride and acidic environments
• M10 x 1.50 metric thread with 70 mm length under head
• Partially threaded shank per DIN 931 standard
• Bright uncoated finish — no coating to flake, chip, or interfere with torque values
• 17 mm hex drive compatible with standard metric hand tools and impact sockets
• Minimum order quantity of 10 ensures job-lot availability for multi-fastener installations

Compatibility

Designed as a DIN 931 metric hex head cap screw for M10 x 1.50 threaded applications requiring Grade 316 stainless steel fasteners.

Installation Notes

Installation is performed by qualified mechanical tradespeople using a 17 mm wrench or socket. Shut down and de-energize or depressurize any system before removing or installing fasteners in pressurized or energized assemblies. When threading into stainless steel mating components, apply an appropriate anti-seize compound to prevent galling, which is common with austenitic stainless fasteners. Follow applicable torque specifications from the equipment manufacturer or relevant fastener standards for the joint class and application.
