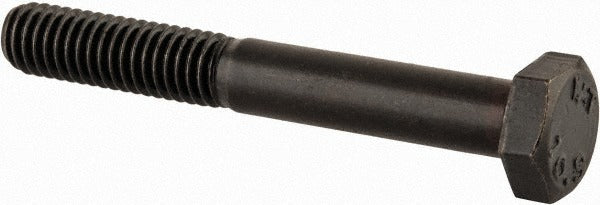

Value Collection HC1006045-100BX M6 Hex Cap Screw

Product Description

The VALUE COLLECTION HC1006045-100BX is a metric hex head cap screw engineered for high-strength fastening applications in industrial, mechanical, and trade assembly work. It features an M6 x 1.00 thread form with a 45 mm length under head, manufactured from Grade 10.9 steel — a high-tensile alloy rated for demanding clamping loads. The black oxide finish provides a mild level of corrosion resistance and reduces light reflection on finished assemblies. The shank is partially threaded per DIN 931, which allows for a bearing surface on the unthreaded portion, making it well-suited for applications where shear load management matters. A 10 mm hex drive is required for installation.

This screw is used across a wide range of mechanical, structural, and equipment assembly applications where metric fasteners and Grade 10.9 tensile strength are specified. Typical install scenarios include machine frames, brackets, motor mounts, and HVAC or industrial equipment enclosures. These screws are commonly installed by millwrights, maintenance technicians, HVAC mechanics, and other trades working with metric-spec equipment. This part is sold in a minimum order quantity of 100 units.

Key Features

• Grade 10.9 high-tensile steel construction for demanding clamping and shear applications
• M6 x 1.00 thread size, partially threaded per DIN 931 standard
• 45 mm length under head provides adequate grip range for medium-depth fastening
• Black oxide finish for mild corrosion resistance and low-glare appearance
• 10 mm hex drive for standard wrench and socket installation
• Metric thread standard for compatibility with metric-spec assemblies

Compatibility

Designed as a DIN 931-compliant partially threaded metric hex head cap screw for use in any metric-spec assembly requiring an M6 x 1.00 Grade 10.9 fastener.

Installation Notes

Installation is performed using a 10 mm hex wrench or socket driver; ensure the mating threaded hole or nut is rated to match Grade 10.9 tensile requirements. De-energize and isolate any equipment before fastening or disassembling assemblies. Do not substitute a lower-grade fastener in positions where Grade 10.9 is specified, as reduced tensile strength can result in joint failure under load. Follow applicable equipment manufacturer torque specifications from the equipment documentation, as no torque value is provided with this fastener.
