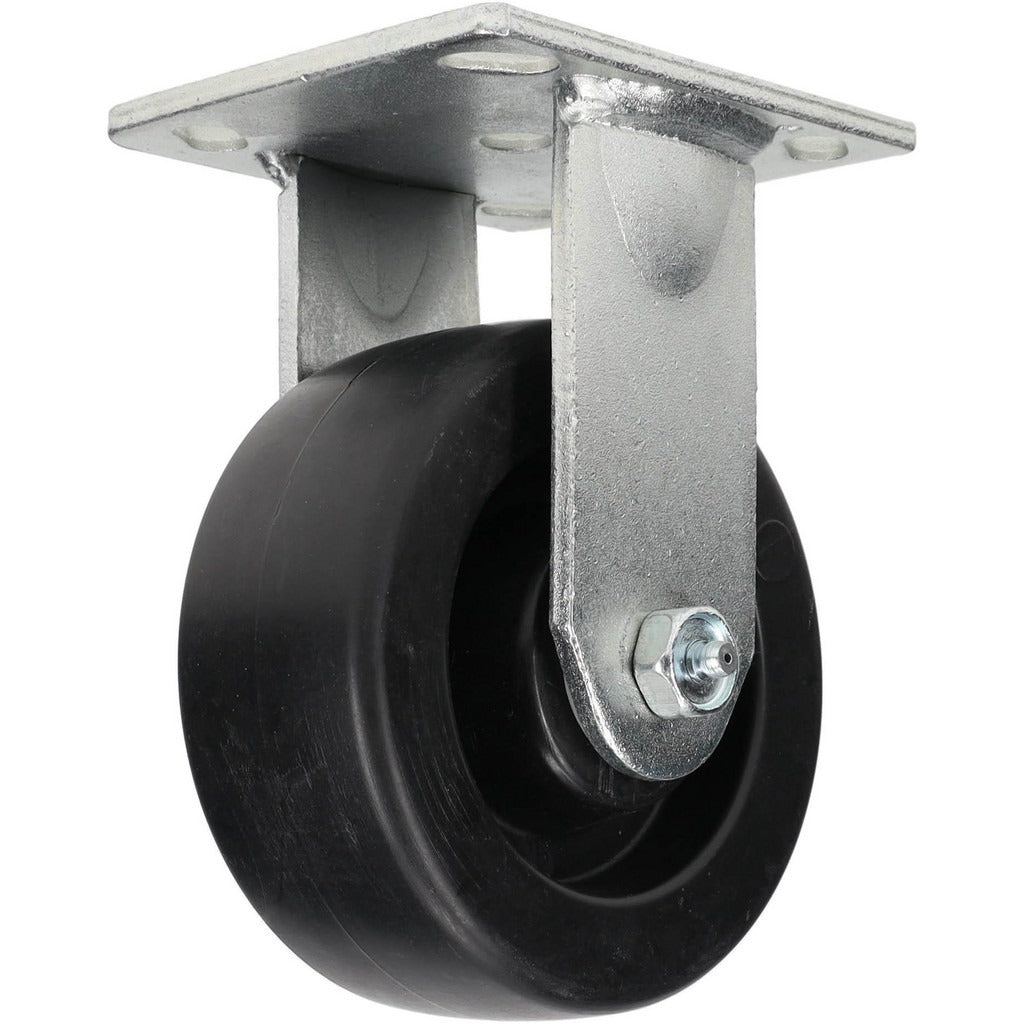

Value Collection GMC-SH-0098 Rigid Top Plate Caster 650 Lb

Product Description

The VALUE COLLECTION GMC-SH-0098 is a rigid top plate caster designed for heavy-duty material handling applications in industrial and commercial environments. It mounts via a fixed top plate, meaning it does not swivel, and is intended to guide equipment in a straight line. The wheel is constructed from polyolefin with a zinc finish and runs on a Delrin bearing, offering smooth, low-friction rolling without requiring lubrication. Rated at 650 pounds load capacity, this caster suits carts, racks, dollies, and other equipment moved regularly across shop floors and warehouses. Licensed technicians and maintenance personnel install these as part of equipment builds or replacements.

This caster is suited for material handling use in manufacturing, warehousing, distribution, and light industrial settings. The rigid style makes it appropriate for the trailing or fixed position on multi-caster equipment, where directional control comes from swivel casters positioned at other corners. The 5-inch wheel diameter provides ground clearance and rolls efficiently over smooth concrete and similar hard flooring surfaces. It is sold individually and is compatible with equipment referencing part 39664784 per supplier data.

Key Features

• 650-pound load capacity for heavy material handling use
• 5-inch polyolefin wheel resists moisture and common shop chemicals
• Delrin bearing provides smooth, maintenance-free rolling
• Rigid mount keeps equipment tracking straight in fixed-direction positions
• Stamp-formed construction with zinc finish for corrosion resistance
• 4 x 4.5 inch top plate fits standard equipment mounting patterns

Compatibility

Compatible with equipment referencing part number 39664784 per supplier data. Designed as a rigid top plate caster for standard material handling carts, racks, and dollies that use a 4 x 4.5 inch plate mounting pattern.

Installation Notes

Installation is performed by maintenance personnel or equipment fabricators using standard hand tools. Before replacing a caster on loaded equipment, transfer the load or lower the equipment safely to the floor. Secure the top plate to the equipment frame using appropriately rated fasteners through all four plate holes to ensure even load distribution. Verify the mounting surface is flat and that fasteners are fully tightened before returning equipment to service.
