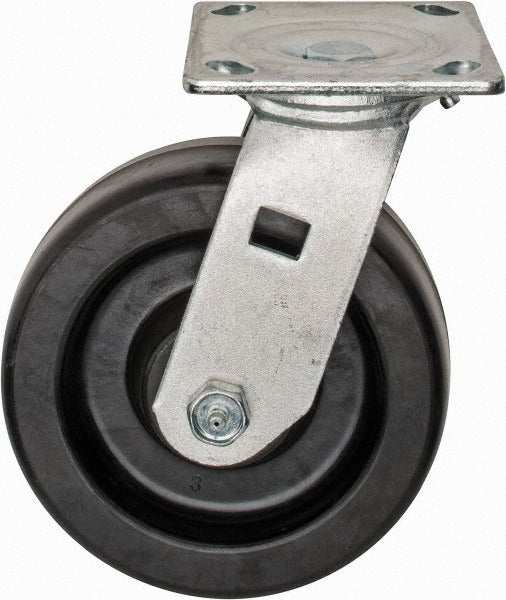

Value Collection GMC-SH-0072 Swivel Top Plate Caster

Product Description

The VALUE COLLECTION GMC-SH-0072 is a swivel top plate caster built for heavy-duty material handling applications. It uses a phenolic wheel measuring 6 inches in diameter and 2 inches wide, mounted on a stamp-formed swivel frame with a zinc finish. The roller bearing design supports load capacities up to 1,200 pounds, making it suitable for industrial carts, equipment bases, and workstation platforms. The top plate mount provides a straightforward bolt-down installation on flat surfaces. Overall height is 7.5 inches. Weight is 6.5 pounds per unit.

This caster is intended for material handling environments where a durable, high-capacity swivel caster is required. The phenolic wheel is well suited for smooth concrete and hard floor surfaces common in warehouses, manufacturing floors, and maintenance facilities. The zinc-coated stamp-formed construction resists corrosion in light industrial settings. The 4 inch by 4.5 inch top plate accommodates standard bolt patterns on carts and equipment frames. Compatible for use with item 39664800 as noted in the manufacturer specifications.

Key Features

• 1,200 lb rated load capacity suitable for heavy equipment and industrial carts
• 6 inch diameter phenolic wheel with 2 inch width for stable rolling on hard surfaces
• Roller bearing construction for smooth swivel movement under load
• Stamp-formed swivel frame with zinc finish for corrosion resistance
• 4 inch by 4.5 inch top plate for standard bolt-down mounting
• 7.5 inch overall height for consistent equipment clearance

Compatibility

Designed for material handling applications and confirmed compatible with item 39664800 per manufacturer specifications. Suitable as a replacement or add-on swivel caster for industrial carts, dollies, and equipment bases using a standard top plate mount.

Installation Notes

Installation is typically performed by maintenance technicians or equipment fabricators. The equipment or cart must be fully unloaded and stable before removing or installing casters. Fasten the top plate using hardware appropriate for the load rating and base material. Verify all four mounting bolts are fully seated and that the swivel action moves freely before returning the equipment to service.
