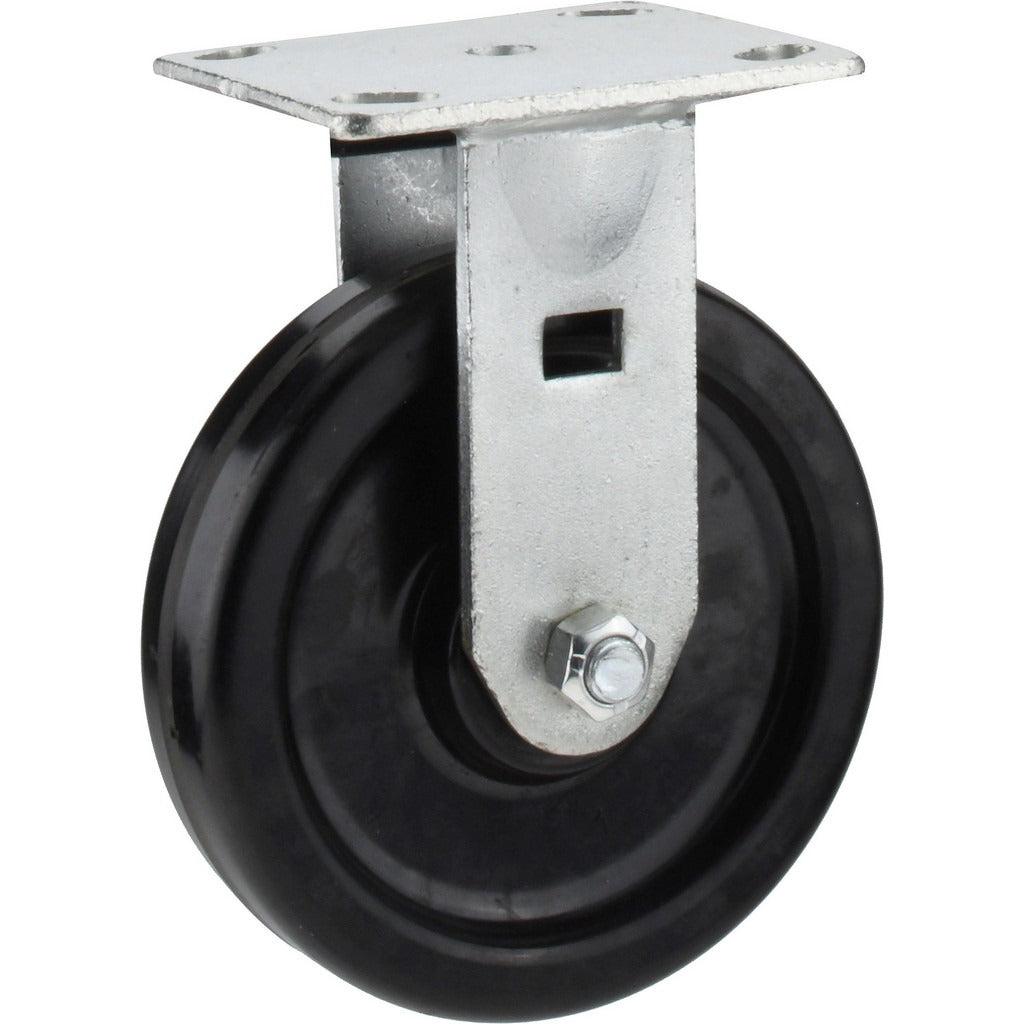

Value Collection GMC-SH-0066 Rigid Caster 6 in 1000 Lb

Product Description

The VALUE COLLECTION GMC-SH-0066 is a rigid top plate caster built for general-purpose industrial and commercial material handling. It uses a phenolic wheel measuring 6 inches in diameter and 1-1/2 inches wide, supported by a roller bearing for smooth, consistent roll under load. The stamp-formed steel construction with a zinc finish provides corrosion resistance in light-moisture environments. Rated at 1,000 lb load capacity, this caster is suited for workbenches, heavy carts, racks, and equipment bases where fixed-direction rolling is required. Overall height is 7-1/2 inches. Installation is performed by maintenance technicians or millwrights using standard hand tools.

This caster is intended for general-purpose applications across light industrial, warehouse, and manufacturing environments. The rigid mount design maintains a fixed wheel orientation, making it appropriate for straight-line travel on equipment that also uses swivel casters at the opposing end. The 4 inch by 4-1/2 inch top plate bolts directly to the underframe of carts, dollies, or stationary equipment bases. Phenolic wheels perform well on smooth concrete, tile, and hardwood surfaces without marking floors, and the roller bearing construction supports consistent use under sustained loads.

Key Features

• 6 inch phenolic wheel with 1-1/2 inch width for stable, floor-friendly rolling
• 1,000 lb rated load capacity suitable for heavy carts and equipment bases
• Roller bearing construction for smooth operation under continuous load
• Stamp-formed steel frame with zinc finish for corrosion resistance
• 4 inch x 4-1/2 inch top plate for direct bolt-on mounting
• Rigid mount style maintains fixed wheel direction for straight-line applications

Compatibility

Designed as a general-purpose rigid top plate caster for carts, racks, dollies, and equipment bases requiring a 4 inch x 4-1/2 inch bolt pattern and 7-1/2 inch overall height. Referenced for use with item 39664750 per supplier data.

Installation Notes

Install by a qualified maintenance technician or millwright using standard hand tools. Ensure the mounting surface is flat and structurally rated for the intended load before bolting the top plate. Power down or de-energize any motorized equipment before caster installation or replacement. Verify all four mounting bolts are fully torqued to the equipment manufacturer specifications before returning the unit to service.
