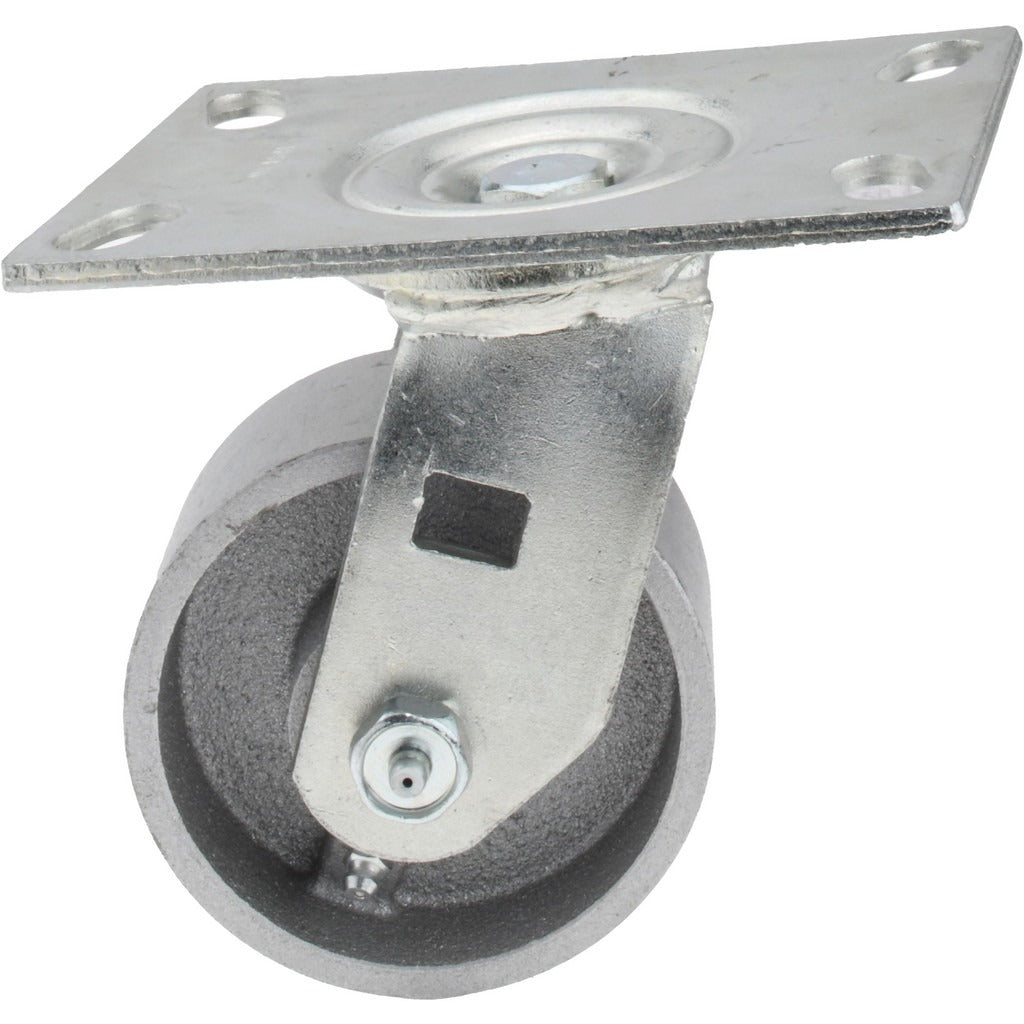

Value Collection GMC-SH-0021 Swivel Top Plate Caster 700 Lb

Product Description

The VALUE COLLECTION GMC-SH-0021 is a swivel top plate caster built for general-purpose industrial and commercial material-handling applications. It rides on a 4-inch diameter cast iron wheel that is 2 inches wide and supports up to 700 pounds of load capacity. The swivel assembly uses a roller bearing for smooth directional changes under load. The mounting plate is stamp-formed steel with a zinc finish, measuring 4.5 inches by 6.25 inches, and the assembled caster stands 5.625 inches in overall height. Tradespeople and maintenance technicians use these casters on workbenches, carts, equipment stands, and shop fixtures where heavy-duty rolling support is required.

This caster is suited for general-purpose installations in warehouses, manufacturing floors, service shops, and maintenance facilities. The cast iron wheel handles hard, flat surfaces well and withstands shop-floor abuse. The swivel top plate mount bolts directly to the underside of a platform or frame, making it adaptable to a wide range of fabricated and purchased equipment bases. The roller bearing construction reduces rolling resistance and extends service life in continuous or frequent-movement applications.

Key Features

• 700 lb load capacity per caster on a roller bearing swivel assembly
• 4-inch diameter cast iron wheel rated for hard, flat surfaces and heavy shop-floor use
• 2-inch wheel width distributes load and improves lateral stability
• Stamp-formed steel construction with zinc finish for corrosion resistance
• 4.5 x 6.25 inch top plate mounts directly to equipment bases with standard hardware
• 5.625-inch overall assembled height suits standard cart and bench frame clearances

Compatibility

Designed as a general-purpose swivel top plate caster for use on carts, benches, equipment stands, and fabricated frames requiring a 4.5 x 6.25 inch bolt pattern and a 700 lb per-caster capacity rating.

Installation Notes

Installation is performed by maintenance technicians or fabricators using standard hand tools. Secure the top plate to the mounting surface with appropriately rated fasteners that match the hole pattern; verify fastener torque against the frame material specification before placing the assembly in service. Ensure the mounting surface is flat and structurally capable of carrying the combined load across all casters before use. Do not exceed the rated 700 lb per-caster load capacity.
