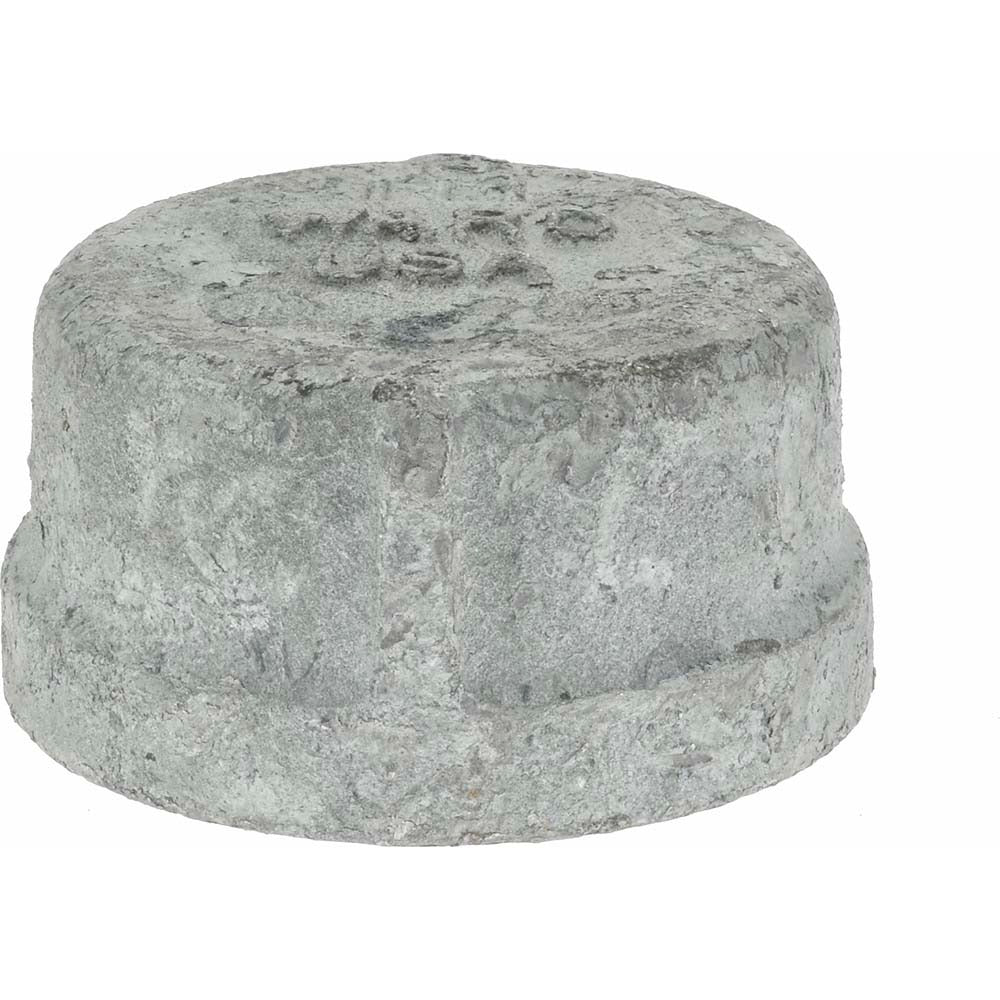

Value Collection G300 50 Malleable Iron Pipe End Cap 2 in

Product Description

The VALUE COLLECTION G300 50 is a malleable iron threaded pipe end cap designed to terminate 2-inch pipe runs in liquid, gas, and steam service. Rated for 300 psi on liquid and gas lines and 150 psi on steam lines, this Class 150 fitting meets ANSI/ASME B1.20.1 thread standards. The galvanized finish provides corrosion resistance for demanding service environments. Plumbers, pipefitters, and mechanical contractors install this type of cap when a pipe run must be closed off cleanly without welding or additional tooling beyond standard pipe wrenches.

This end cap is suited for residential and commercial plumbing and mechanical piping systems where a threaded termination is required. It handles liquid service, gas service, and steam applications within its rated pressure limits, making it a versatile cap for utility and process piping. The 2-inch threaded female connection accepts standard NPT pipe threads per ANSI/ASME B1.20.1.

Key Features

• Malleable iron construction for strength and resistance to mechanical stress
• Galvanized finish for corrosion protection in wet and humid environments
• 300 psi liquid and gas pressure rating
• 150 psi steam pressure rating
• Threaded female end connection — ANSI/ASME B1.20.1 compliant NPT threads
• Class 150 fitting for standard piping system compatibility

Compatibility

Designed as a standard threaded end cap for 2-inch NPT pipe systems in liquid, gas, and steam service applications that operate within Class 150 pressure ratings.

Installation Notes

Installation is performed by licensed plumbers or pipefitters. Depressurize and isolate the pipe system completely before installing or removing any threaded fittings. Apply an appropriate thread sealant or PTFE tape to the male pipe threads before engagement. Tighten using a pipe wrench to achieve a proper seal without overtightening, which can crack malleable iron fittings. Follow applicable IPC and IFGC code requirements for the specific service type.
