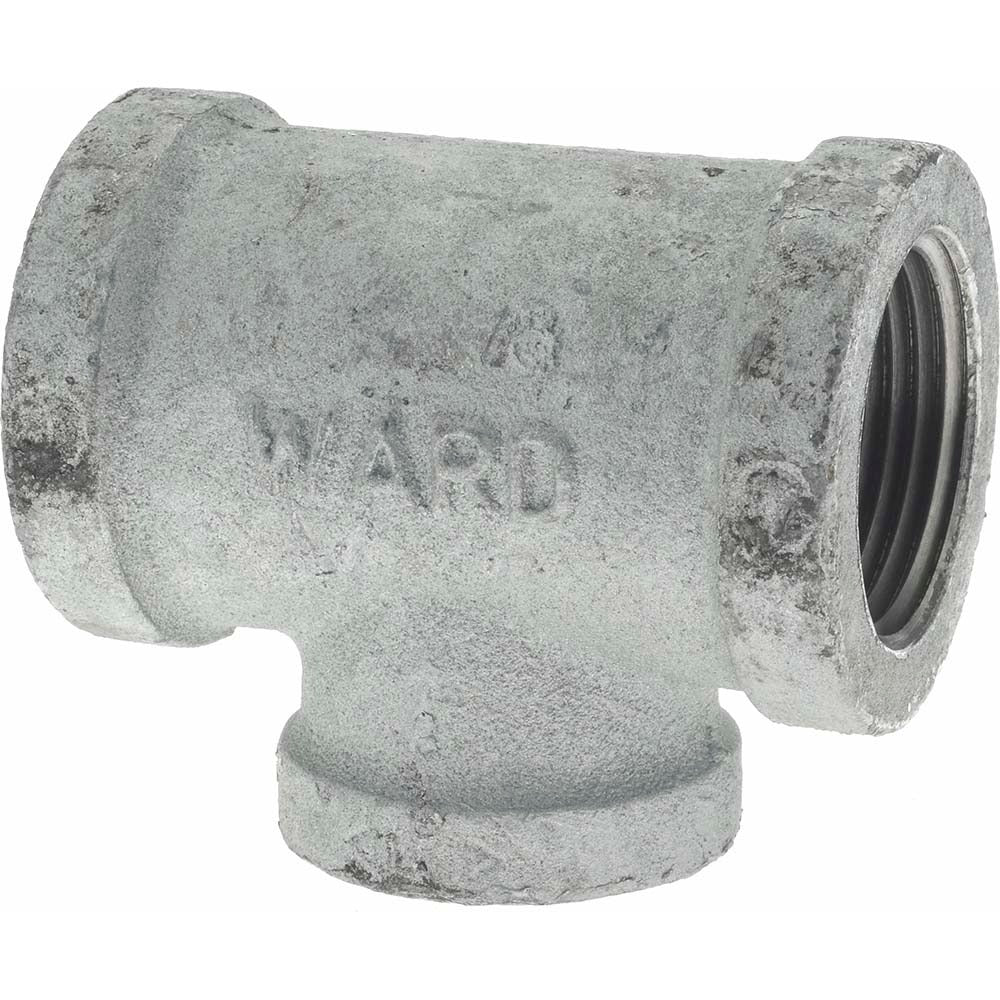

Value Collection G130R 25X20 Malleable Iron Tee Reducer

Product Description

The VALUE COLLECTION G130R 25X20 is a malleable iron threaded tee reducer designed for use in piping systems that carry liquid, gas, or steam. The fitting connects pipes at three points, reducing one branch from 1 inch to 3/4 inch while maintaining 1-inch runs on the through ends. It carries a 300 psi rating for liquid and gas service and a 150 psi rating for steam service. The galvanized finish provides corrosion resistance in damp or exposed environments. Licensed plumbers and pipefitters install this fitting in commercial and industrial piping assemblies where a branch reduction is required.

This tee reducer is suited for residential and commercial plumbing, HVAC hydronic systems, compressed air lines, and gas distribution piping where a threaded connection is specified. The 1 x 1 x 3/4 inch configuration is a common size in branch-line installations where the main run stays at 1 inch and a smaller 3/4 inch branch feeds a downstream fixture or appliance. The Class 150 rating and FM Approval make it appropriate for fire-protection-adjacent piping and general industrial use.

Key Features

• Malleable iron construction provides strength and resistance to impact in threaded piping assemblies
• Galvanized finish for added corrosion resistance in wet or outdoor environments
• 300 psi liquid and gas pressure rating for demanding service conditions
• 150 psi steam pressure rating
• FM Approved, cULus Listed, and manufactured to ISO 7/1 standards
• Threaded end connections for straightforward installation without welding or soldering

Compatibility

Designed as a standard Class 150 malleable iron threaded tee reducer for use in 1 x 1 x 3/4 inch pipe configurations across liquid, gas, and steam service applications.

Installation Notes

Installation should be performed by a licensed plumber or pipefitter in accordance with applicable plumbing codes such as the IPC or local equivalents. Shut off and depressurize the piping system completely before removing any fittings or making new connections. Apply an approved thread sealant or PTFE tape to male threads before assembly, and tighten to hand-snug plus the appropriate number of turns per pipe size per your local code or fitting manufacturer guidance. Do not over-tighten malleable iron fittings, as the material can crack under excessive torque.
