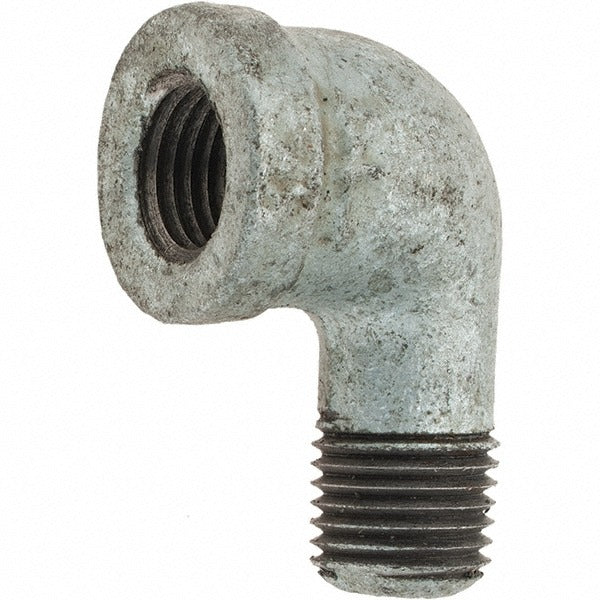

Value Collection G-S9002 Malleable Iron 90 Street Elbow 1/4

Product Description

The VALUE COLLECTION G-S9002 is a malleable iron 90-degree street elbow designed for use in threaded pipe systems carrying liquid, gas, or steam. This Class 150 galvanized fitting handles liquid and gas service up to 300 psi and steam service up to 150 psi. The galvanized finish provides corrosion resistance in exposed or mildly corrosive environments. At a 1/4 inch fitting size, it is suited for small-diameter branch connections and directional changes within compressed air, gas distribution, and general piping systems. Licensed plumbers, pipefitters, and mechanical contractors are the typical installers of this type of fitting.

This street elbow is appropriate for residential and light commercial piping applications where a male-to-female 90-degree turn is required in a 1/4 inch threaded line. Common uses include natural gas supply lines, compressed air distribution, and low-pressure steam heating systems. The malleable iron construction makes it compatible with standard NPT threaded pipe assemblies in mechanical rooms, utility spaces, and process piping configurations.

Key Features

• Malleable iron construction provides strength and resistance to impact in threaded piping systems
• Galvanized finish offers corrosion resistance for general-purpose and exposed installations
• 300 psi liquid and gas pressure rating suitable for compressed air and gas distribution
• 150 psi steam pressure rating supports low-pressure steam heating applications
• Class 150 fitting meets standard requirements for threaded malleable iron pipe fittings
• 90-degree street elbow configuration allows a compact directional change without an additional nipple

Compatibility

Designed as an OEM-style replacement or new-installation fitting for 1/4 inch NPT threaded malleable iron pipe systems in gas, liquid, and low-pressure steam service.

Installation Notes

Installation should be performed by a licensed plumber or pipefitter in accordance with applicable codes such as the International Plumbing Code or International Fuel Gas Code. Shut off and depressurize the line completely before disassembling or installing any threaded fitting. Apply an approved thread sealant or PTFE tape to male threads before assembly, and hand-tighten before using a pipe wrench to seat the fitting. Do not overtighten, as malleable iron fittings can crack if subjected to excessive torque.
