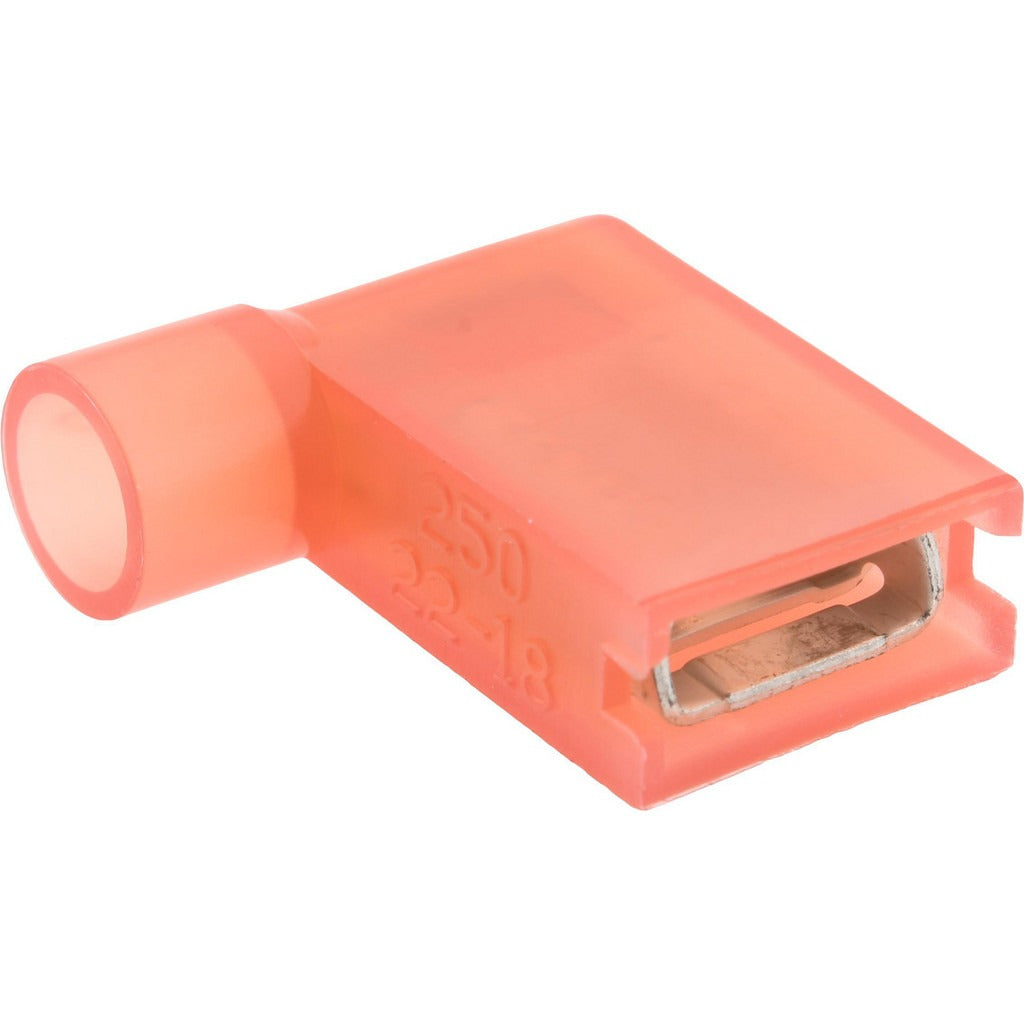

Value Collection FLDNY1-250 Female Wire Disconnect

Product Description

The VALUE COLLECTION FLDNY1-250 is a fully insulated female wire disconnect designed for quick, reliable crimp connections in low-voltage wiring applications. The nylon insulation sleeve is red, making polarity and circuit identification straightforward during installation or service. Rated for 22-18 AWG conductors, this terminal accepts a 1/4 inch tab width and is constructed with a brass contact for solid electrical conductivity. Electricians, HVAC technicians, and panel builders use these disconnects wherever a secure, removable spade-style termination is required.

This disconnect is suited for residential and light commercial electrical work, control wiring, and equipment panel connections. Common applications include low-voltage control circuits in HVAC systems, appliance wiring, and automotive or industrial panel assembly where a crimp-style female spade terminal is the specified termination method. The fully insulated nylon body provides protection against incidental contact with adjacent terminals.

Key Features

• Fully insulated nylon sleeve in red for easy circuit identification
• Crimp connection type for fast, tool-assisted termination
• Compatible with 22-18 AWG wire (0.50 to 0.75 sq mm)
• 1/4 inch (6.35 mm) tab width for standard spade connectors
• Brass contact material for reliable conductivity
• cUL Listed, UL Listed, and RoHS Compliant

Compatibility

Designed as a standard OEM-style female spade disconnect for use with 1/4 inch male tab terminals across residential and light commercial control wiring applications.

Installation Notes

Installation is performed by electricians or qualified technicians using an appropriate wire crimping tool sized for 22-18 AWG terminals. De-energize the circuit completely before making or breaking any terminal connections. Inspect the crimp after termination to confirm full conductor engagement and that the insulation sleeve is fully seated. Follow applicable NEC requirements for the wiring method and environment in which the terminal is installed.
