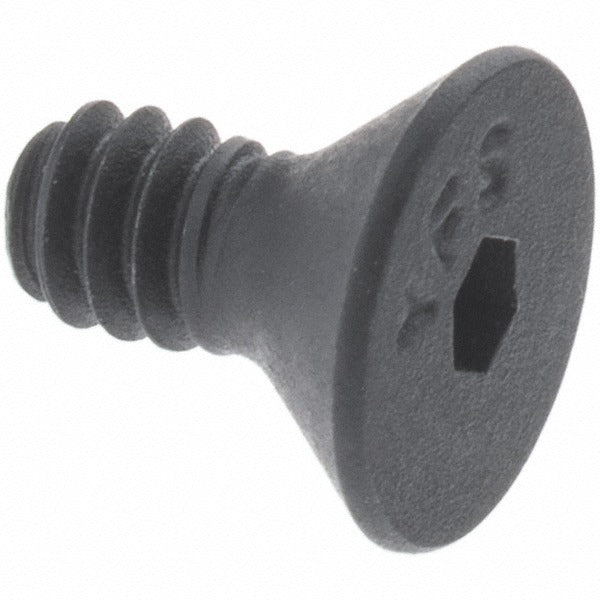

Value Collection FHS1XX1035-025BX Flat Socket Cap Screw M10x1.5

Product Description

The VALUE COLLECTION FHS1XX1035-025BX is a metric flat socket cap screw designed for applications requiring a low-profile, flush-mount fastening solution. It features a 90-degree flat head with a hex socket drive, allowing the fastener to sit flush or countersunk within the mating material. Manufactured from 316 stainless steel to Austenitic Grade A4 specification, this screw delivers strong corrosion resistance suitable for marine, chemical, and outdoor environments. The M10x1.5 thread size with partial threading and a 6H fit class ensures reliable thread engagement in precision-machined assemblies. Machinists, millwrights, maintenance technicians, and general contractors install this type of fastener in a wide range of structural and equipment applications.

This flat socket cap screw is used in assemblies where a protruding fastener head is not acceptable, such as panels, brackets, flanges, and frames. The countersunk 90-degree head profile allows it to seat flush into chamfered holes. Its 316 stainless steel construction makes it well suited for food processing equipment, marine hardware, chemical plant components, and outdoor structural installations where standard carbon steel fasteners would corrode. The partial threading design concentrates clamping force across the unthreaded shank, making it appropriate for applications with significant shear loads.

Key Features

• 90-degree flat countersunk head profile for flush or below-surface installation
• Hex socket drive accepts a 6.00 mm hex key for installation in tight clearances
• 316 Austenitic Grade A4 stainless steel for superior corrosion and oxidation resistance
• M10x1.5 metric thread with 6G thread fit class per DIN 7991 standard
• Partially threaded shank with 26.00 mm thread length out of 35.00 mm overall length
• Plain finish with no coating, preserving base material corrosion properties

Compatibility

Designed as a standard DIN 7991 metric flat socket cap screw for use in M10x1.5 tapped or clearance holes requiring a 90-degree countersunk head seating angle. Verify countersink angle and hole diameter in the mating component before installation.

Installation Notes

Install using a calibrated 6.00 mm hex key or hex socket bit driver. Ensure the mating hole is chamfered to a 90-degree countersink angle to achieve full head seating and proper clamp load. Power down or de-energize any equipment before fastener replacement on live assemblies. Consult applicable structural or equipment codes for torque requirements, as no torque value is specified for this part in the available data.
