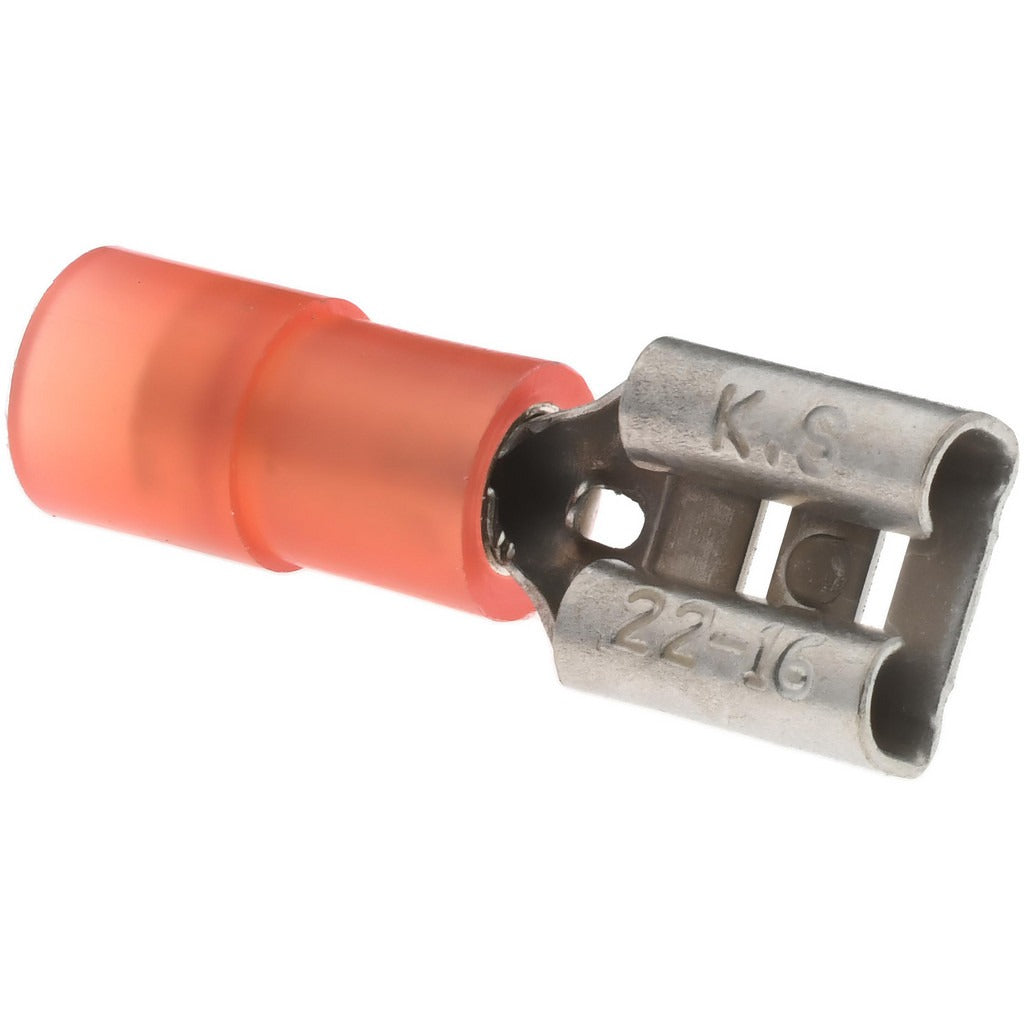

Value Collection FDNYD1-250 Female Wire Disconnect

Product Description

The VALUE COLLECTION FDNYD1-250 is a female quick-disconnect terminal designed for reliable low-voltage wiring connections in electrical and control circuit applications. The terminal uses a double crimp connection method, securing both the wire conductor and insulation for a mechanically sound termination. It accepts 22 to 16 AWG wire and mates with a 1/4 inch wide male tab. The partially insulated nylon sleeve is red, making it easy to identify during installation and service. This terminal is a standard component used by electricians, HVAC technicians, and control panel assemblers wherever push-on disconnects are required.

This disconnect terminal is suited for residential and light commercial wiring applications including HVAC control wiring, appliance harness repair, panel assembly, and general electrical connector work. The red nylon insulation indicates compatibility with 22 to 16 AWG wire ranges, consistent with common color-coding conventions for small-gauge terminals. These terminals are typically installed in bundles and are ordered in multiples of 50 to support production and service use.

Key Features

• Double crimp connection secures both conductor and insulation for a durable termination
• Accepts 22-16 AWG wire (0.50 to 1.50 sq mm)
• 1/4 inch (6.35 mm) tab width for standard push-on male blade connectors
• Brass contact material for reliable conductivity
• Partially insulated red nylon sleeve for wire range identification and finger safety
• UL Listed and cUL Listed; RoHS Compliant

Compatibility

Designed for use with standard 1/4 inch male blade tab connectors and compatible with 22-16 AWG wire per UL and cUL listing requirements.

Installation Notes

Installation is performed using a ratcheting or standard wire terminal crimping tool rated for the AWG range being terminated. Always de-energize the circuit before installing or removing push-on disconnect terminals. Ensure the wire is stripped to the correct length before inserting into the terminal barrel, and verify both the conductor and insulation are captured by the double crimp. Follow applicable NEC guidelines for wire gauge selection and connector ratings in the specific circuit application.
