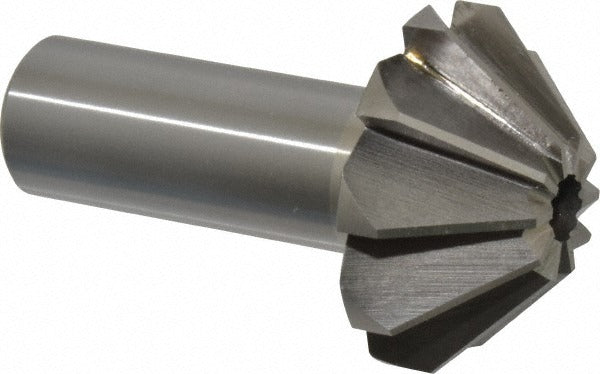

Value Collection FAC1390HS Face Angle Cutter 90 Degree Hss

Product Description

The VALUE COLLECTION FAC1390HS is a high speed steel face angle cutter designed for precise angular milling and chamfering operations on metal workpieces. It features a 90-degree included angle and an uncoated high speed steel body, making it well suited for general-purpose face angle cutting in manual and CNC milling applications. The cutter accepts a Weldon flat shank for positive drive engagement, reducing slippage under load. With a large diameter of 1-5/8 inches and a small diameter of 5/8 inch, this tool delivers a width of cut of 11/16 inch per pass. Machinists and toolroom professionals are the primary installers and operators of this cutter.

This face angle cutter is used in machine shops, toolrooms, and production environments where angular recesses, chamfers, or face angle profiles are required on steel, aluminum, and similar metals. The 90-degree included angle is a common geometry for spotfacing and countersinking preparation work. The 3/4-inch shank diameter and 2-11/16-inch overall length make it compatible with standard vertical milling machine spindles and milling chucks sized for that shank diameter. It is appropriate for both job shop and production milling setups.

Key Features

• 90-degree included angle for standard angular milling and chamfering profiles
• High speed steel construction provides good toughness across a range of workpiece materials
• Uncoated finish suitable for general-purpose cutting applications
• Weldon flat shank design prevents rotational slippage in milling holders
• 3/4-inch shank diameter fits standard milling chucks and collet holders
• Width of cut of 11/16 inch per pass for consistent material removal

Compatibility

Designed for use in milling machines and machining centers equipped with holders accepting a 3/4-inch Weldon flat shank. No specific model compatibility data was provided by the manufacturer for this SKU.

Installation Notes

Installation is performed by qualified machinists. Secure the Weldon flat shank firmly in the milling holder or end mill adapter, ensuring the set screw engages the flat to prevent pullout. Power down and lock out the machine spindle before changing or inspecting the cutter. Follow applicable shop safety practices and machine manufacturer guidelines for spindle speed and feed rate selection based on workpiece material and depth of cut.
