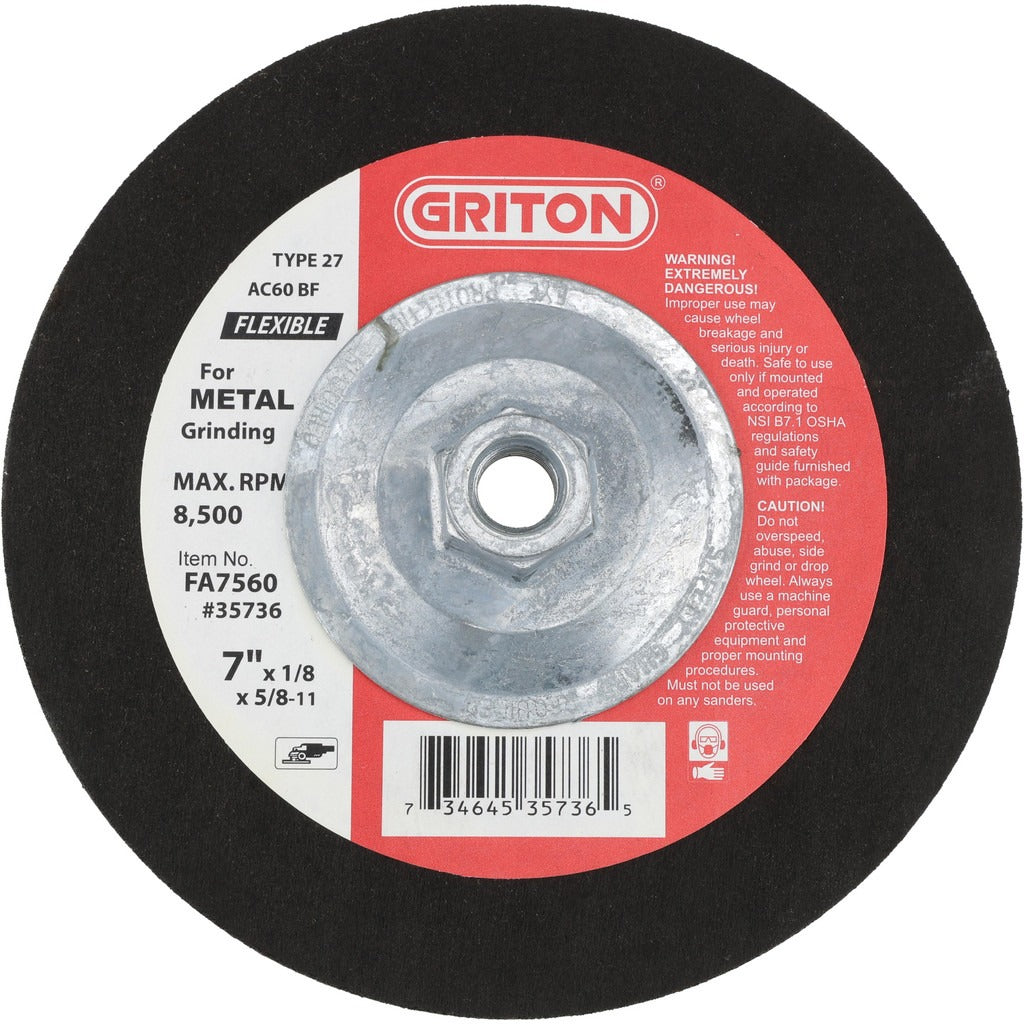

Value Collection FA7560 Type 27 Grinding Wheel 7in 60 Grit

Product Description

The VALUE COLLECTION FA7560 is a Type 27 depressed center grinding wheel designed for aggressive material removal on ferrous and non-ferrous workpieces. Measuring 7 inches in diameter and 1/8 inch thick, it uses an aluminum oxide abrasive bond in a medium 60-grit grade, making it well suited for weld blending, surface conditioning, and edge work. The resinoid bond holds abrasive grains firmly under load, and the wheel is rated to a maximum of 8,500 RPM. The 5/8-11 threaded arbor hole fits the standard spindle thread found on most 7-inch angle grinders. Fabricators, pipefitters, ironworkers, and maintenance mechanics are the typical end users.

This wheel is intended for use on 7-inch angle grinders in fabrication shops, pipe yards, structural steel work, and general maintenance applications. The Type 27 raised-hub profile keeps the grinding face at a low angle to the workpiece, which improves operator control during flat grinding and weld dressing. The 60-grit medium grade removes material efficiently without excessive loading on softer metals. Each package contains one wheel.

Key Features

• Type 27 depressed center profile for low-angle flat grinding and weld blending
• Aluminum oxide abrasive in a resinoid bond for consistent, controlled stock removal
• 60 grit medium grade balances cut rate and surface finish
• Rated to 8,500 RPM maximum for compatibility with standard 7-inch angle grinders
• 5/8-11 threaded connector fits the most common angle grinder spindle standard
• 1/8 inch wheel thickness provides a rigid grinding face with minimal deflection

Compatibility

Designed for use with 7-inch angle grinders equipped with a 5/8-11 threaded spindle, which is the prevailing standard for grinders in this size class.

Installation Notes

Installation must be performed by a qualified operator following ANSI B7.1 safe-use guidelines for abrasive wheels. Confirm the grinder's no-load RPM rating meets or exceeds the wheel's 8,500 RPM maximum before mounting. Disconnect power and allow the grinder to come to a complete stop before changing wheels. Inspect the wheel for cracks or chips before each use and never exceed the maximum RPM marked on the wheel.
