Value Collection EH5110 Brass Sex Bolt Binding Post 10-32

Product Description

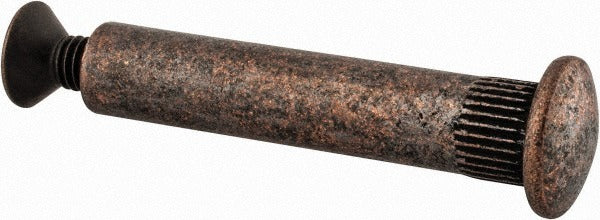

The VALUE COLLECTION EH5110 is a flat head, Phillips drive sex bolt binding post designed for tamper-resistant fastening applications. Also known as a screw barrel or Chicago bolt, this binding post consists of a threaded barrel that accepts a mating screw, allowing material to be clamped between two threaded components. Machined from brass with a bronze-plated finish, the EH5110 measures 1 inch overall length (OAL) with a 1-9/16 inch long barrel. The 10-32 UNF thread specification ensures precise engagement and secure clamping. This type of fastener is installed by electricians, sign fabricators, and general contractors in panel assemblies, signage, binder hardware, and related light-duty fastening work.

The EH5110 binding post is suited for residential and commercial applications where a flush, tamper-resistant connection is required. The flat head profile sits flush with the mating surface, and the Phillips drive allows installation with standard hand tools. Typical uses include electrical panel labeling hardware, display assemblies, menu boards, leather goods, and document binding. The bronze-plated brass construction provides corrosion resistance appropriate for indoor and lightly protected environments. This part is sold individually.

Key Features

• 10-32 UNF thread for precise, secure engagement with mating screw barrel components
• Flat head profile allows flush seating against the mating surface
• Phillips drive compatible with standard hand tools and power drivers
• Brass construction with bronze-plated finish for corrosion resistance
• Tamper-resistant sex bolt design reduces unauthorized disassembly
• 1 inch OAL with 1-9/16 inch long barrel accommodates varied material stack thicknesses

Compatibility

Designed for use with 10-32 UNF mating screw barrel components in panel assemblies, signage hardware, document binding, and similar light-duty fastening applications requiring a flush, two-piece threaded binding post.

Installation Notes

Installation requires no special tools beyond a standard Phillips screwdriver or compatible bit. Ensure the mating barrel and screw are aligned before driving to avoid cross-threading the 10-32 UNF threads. Hand-tighten first to confirm thread engagement before applying torque. For electrical enclosure applications, verify compliance with applicable NEC requirements before installing panel hardware.
