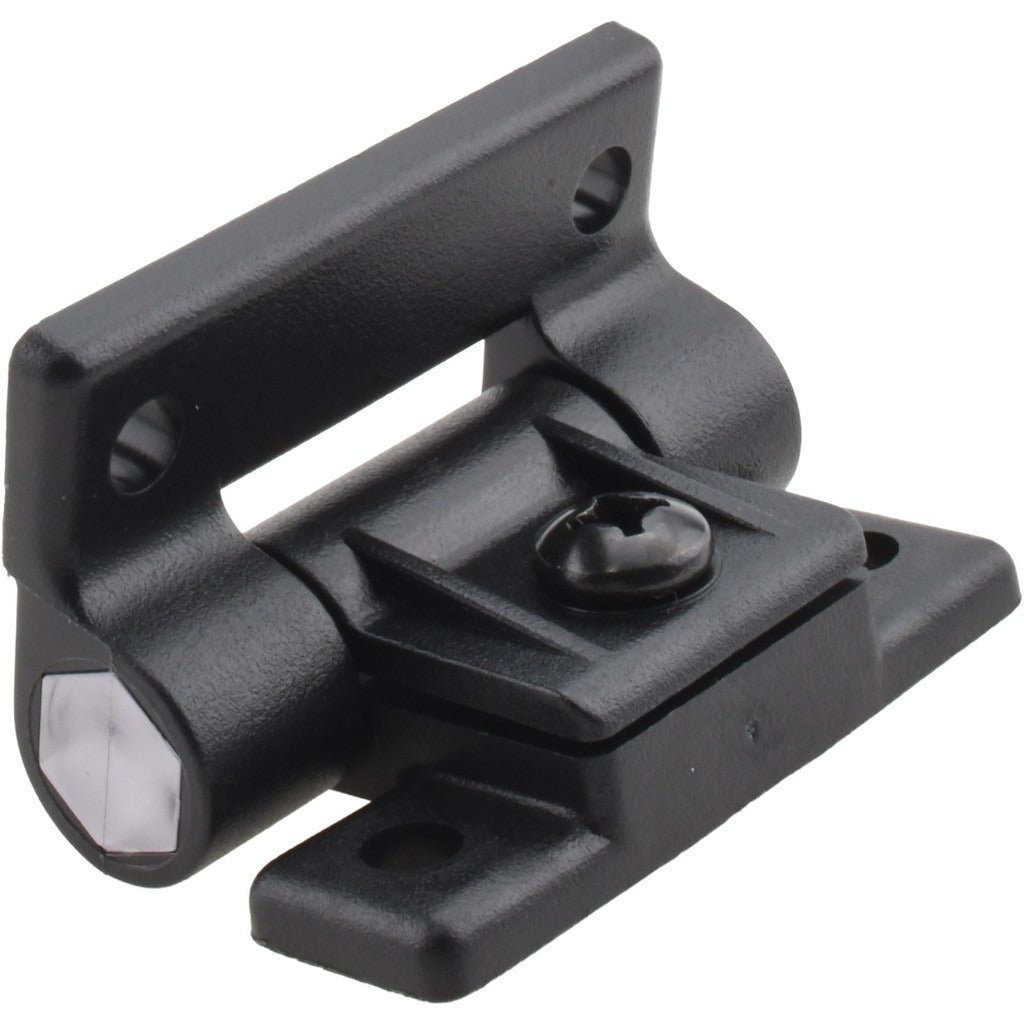

Value Collection E6-10-501-20 Adjustable Friction Hinge

Product Description

The VALUE COLLECTION E6-10-501-20 is an adjustable friction hinge constructed from acetal with a black finish. It measures 2-17/64 inches in overall width and 49/64 inches in leaf thickness, with a pin diameter of 1/2 inch and a single knuckle design. The hinge provides a radial tensile strength rating of 700 pounds and an axial strength rating of 450 pounds, making it well suited for applications that require controlled rotational resistance. Maintenance technicians, equipment fabricators, and panel assembly professionals install this type of hinge where repeatable, adjustable positioning is required without the use of separate locking hardware.

This adjustable friction hinge is used in light industrial and commercial panel, enclosure, and access door applications where a component must be held at a set angle without fastening. The 4-hole mounting pattern and acetal construction make it appropriate for equipment panels, instrument enclosures, and similar assemblies where corrosion resistance and consistent friction torque are priorities. The black finish blends with standard enclosure aesthetics. Package quantity is 1 unit per order.

Key Features

• Acetal construction provides corrosion resistance and dimensional stability
• Adjustable friction design holds position without secondary locking hardware
• 700-pound radial tensile strength and 450-pound axial strength capacity
• 1/2-inch pin diameter with single knuckle configuration
• 4 mounting holes for secure panel or enclosure attachment
• Black finish for standard enclosure compatibility

Compatibility

Designed as an OEM-style replacement or direct-fit friction hinge for light industrial panels, access doors, and equipment enclosures requiring a 2-17/64-inch wide, 4-hole mounting configuration.

Installation Notes

Installation is typically performed by equipment fabricators or maintenance technicians using standard hand tools. Ensure the mating panel or frame surface is clean and flat before mounting to maintain proper friction engagement. Verify that fastener size matches the hinge mounting hole dimensions before tightening. Friction adjustment should be evaluated through the full range of motion after installation to confirm consistent hold at the desired angle.
