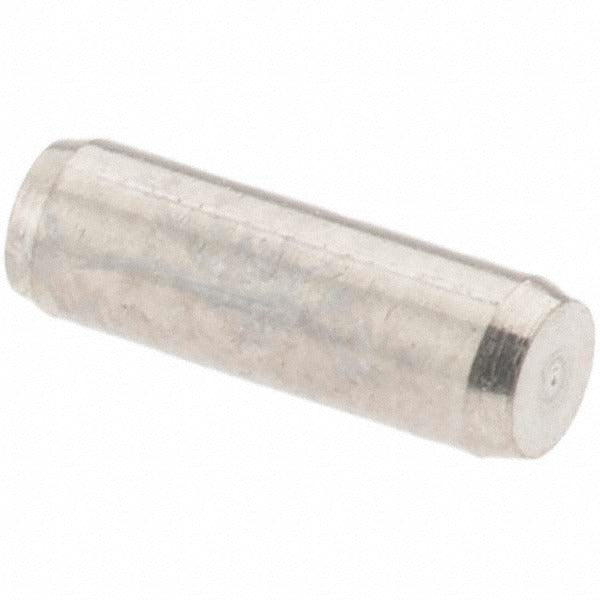

Value Collection DP7X02006M6-050B Precision Dowel Pin 50pk

Product Description

The VALUE COLLECTION DP7X02006M6-050B is a precision dowel pin used to align, locate, and retain mating components in close-tolerance assemblies. Machined from Grade 416 stainless steel, this pin measures 2 mm in diameter and 6 mm in overall length with a diameter tolerance of 0.0020 to 0.0090 mm, making it suitable for applications that demand repeatable positional accuracy. Hardness is rated at 36-42 HRC, providing solid resistance to wear and deformation under load. The pin features one beveled end and one rounded end to aid insertion and seating. Sold in a package of 50 pins.

Precision dowel pins of this type are used across manufacturing, maintenance, and fabrication environments. Typical applications include fixture building, die and mold alignment, machine tool assembly, and jig construction. The stainless steel construction makes this pin a practical choice in environments where mild corrosion resistance is required alongside hardness. Machinists, toolmakers, and industrial maintenance technicians are the primary installers. The small diameter and short length suit compact or fine-tolerance work where standard larger pins would not fit.

Key Features

• Grade 416 stainless steel construction for corrosion resistance and machinability
• 2 mm diameter with a tight tolerance of 0.0020 to 0.0090 mm for precise fit
• 6 mm overall length for compact alignment applications
• 36-42 HRC hardness for wear resistance under repeated assembly cycles
• One beveled end and one rounded end for easier insertion and seating
• Packaged in quantities of 50 for bench stock and production use

Compatibility

Designed as a standard precision dowel pin for use in close-tolerance alignment and location applications in machined components, fixtures, and tooling assemblies requiring a 2 mm nominal diameter pin.

Installation Notes

Installation is typically performed by machinists or toolmakers using a press fit or light mallet drive into a reamed or precision-drilled hole. Confirm hole diameter and surface finish meet the required tolerance before pressing the pin to avoid galling or damage to the bore. De-energize and lock out any associated machinery before performing alignment or pin replacement work on active equipment.
