Value Collection DC6015CO Dovetail Cutter 60 Degree Cobalt

Product Description

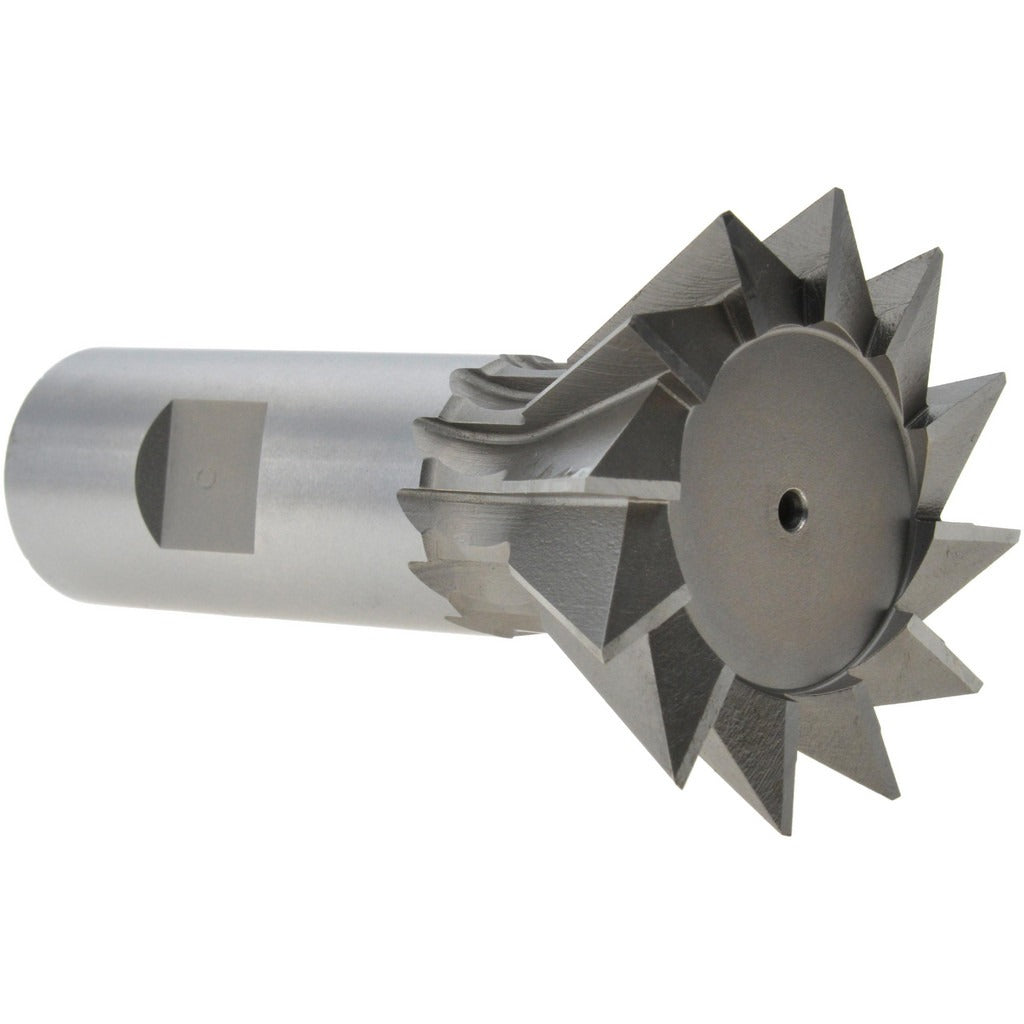

The VALUE COLLECTION DC6015CO is a 60-degree dovetail cutter designed for milling dovetail slots and angular undercuts in metalworking applications. Manufactured from M42 cobalt high-speed steel, it delivers improved heat and wear resistance compared to standard M2 HSS tooling. The cutter measures 1.875 inches in cut diameter and 0.8125 inches in cutting width, with a 0.875-inch shank diameter for secure tool holding. The bright, uncoated finish is suited for use with cutting fluids where coating adhesion is not required. This tool is typically installed by machinists and CNC operators in production and job-shop environments.

The DC6015CO is used in ferrous and non-ferrous metal milling operations where a 60-degree dovetail profile is required. Common applications include fixture plates, machine tool slides, and mechanical assembly components that rely on dovetail joints for alignment or retention. The 0.875-inch shank fits standard milling machine collets and tool holders of the corresponding bore size. This cutter is appropriate for both manual knee mills and CNC machining centers capable of accommodating the shank diameter and cut geometry.

Key Features

• 60-degree included angle for standard dovetail slot geometry
• M42 cobalt HSS construction for improved heat resistance and edge retention
• 1.875-inch cut diameter and 0.8125-inch cutting width
• 0.875-inch shank diameter for broad tool holder compatibility
• Bright, uncoated finish compatible with flood coolant and cutting oil applications

Compatibility

Designed as a standard dovetail milling cutter for use in milling machines and machining centers accepting a 0.875-inch shank diameter tool holder or collet.

Installation Notes

Installation should be performed by a qualified machinist. Ensure the machine spindle is fully powered down and locked out before mounting or removing the cutter. Seat the shank fully into the collet or tool holder and torque the retention mechanism per the tool holder manufacturer's specification. Verify runout with a dial indicator before cutting to ensure proper engagement and surface finish.
