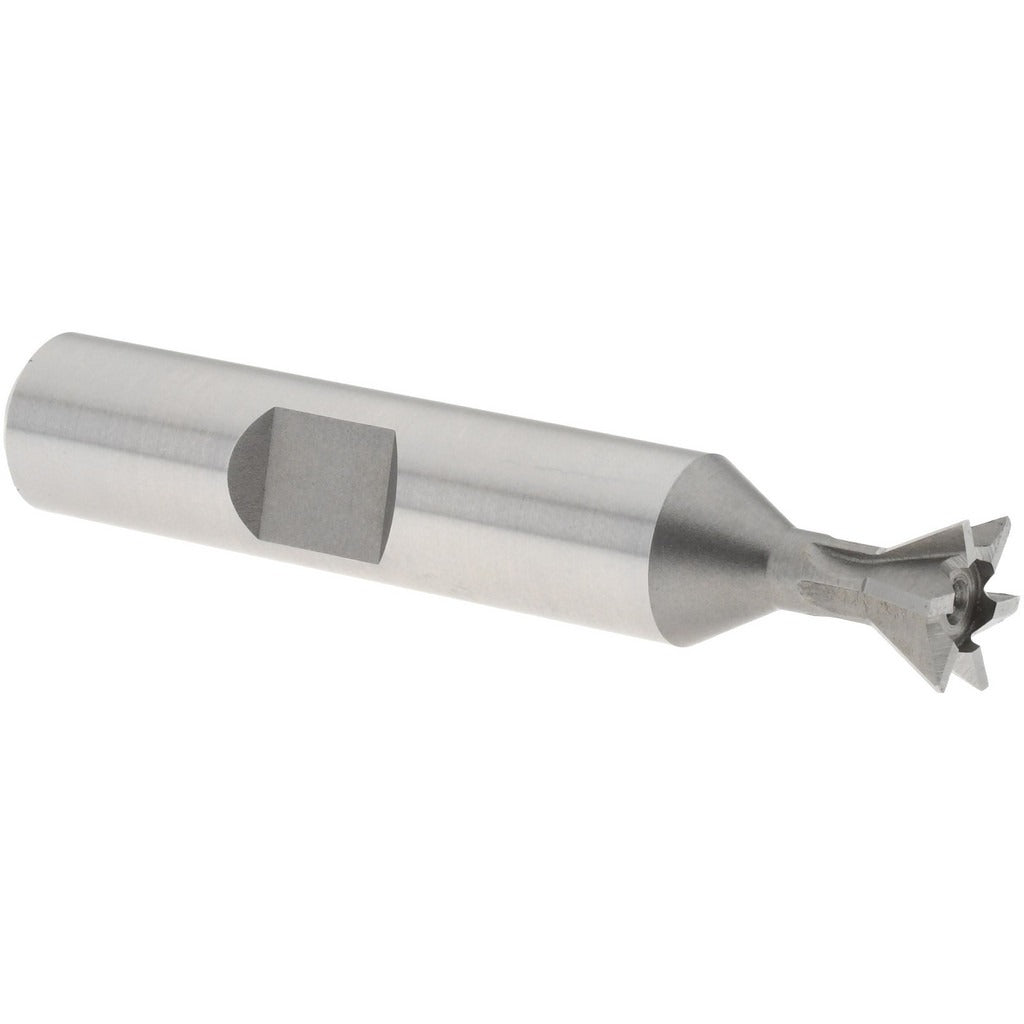

Value Collection DC6003HS Dovetail Cutter 60 Deg Hss

Product Description

The VALUE COLLECTION DC6003HS is a 60-degree dovetail cutter designed for milling dovetail slots and angled undercuts in metal and similar materials. The cutter features a 3/8 inch cutting diameter and a 3/16 inch cutting width, making it well suited for smaller-scale dovetail profiles commonly found in fixture work, jig construction, and machine component production. The body is manufactured from high speed steel (HSS) with a bright, uncoated finish. The 3/8 inch shank provides a standard grip for use in milling machine collets and tool holders. Machinists and tool-and-die professionals install this type of cutter for precision slot work on manual and CNC knee mills.

This dovetail cutter is used in job shops, production machining environments, and maintenance departments where dovetail joints or slide ways need to be cut or refurbished. It is appropriate for applications in ferrous and non-ferrous metals where a 60-degree included angle profile is required. The compact cutting diameter makes it a practical choice for tighter workpieces or fixtures with limited clearance around the cut zone.

Key Features

• 60-degree included angle for standard dovetail slot profiles
• 3/8 inch cutting diameter for smaller dovetail applications
• 3/16 inch cutting width for controlled material removal
• High speed steel construction for general-purpose metal cutting
• Bright, uncoated finish suitable for standard machining conditions
• 3/8 inch shank diameter fits common milling collets and holders

Compatibility

Designed as a standard dovetail cutter for use in milling machines accepting a 3/8 inch shank, including manual knee mills and CNC machining centers equipped with appropriate collet tooling.

Installation Notes

Installation is performed by qualified machinists familiar with milling machine setup and toolholding procedures. Ensure the spindle is fully powered down and locked before loading or removing the cutter from the collet. Confirm proper collet size and clamping torque per the machine manufacturer's specifications before beginning the cut. Feeds and speeds should be selected based on workpiece material and machine capability using standard HSS cutting parameters.
