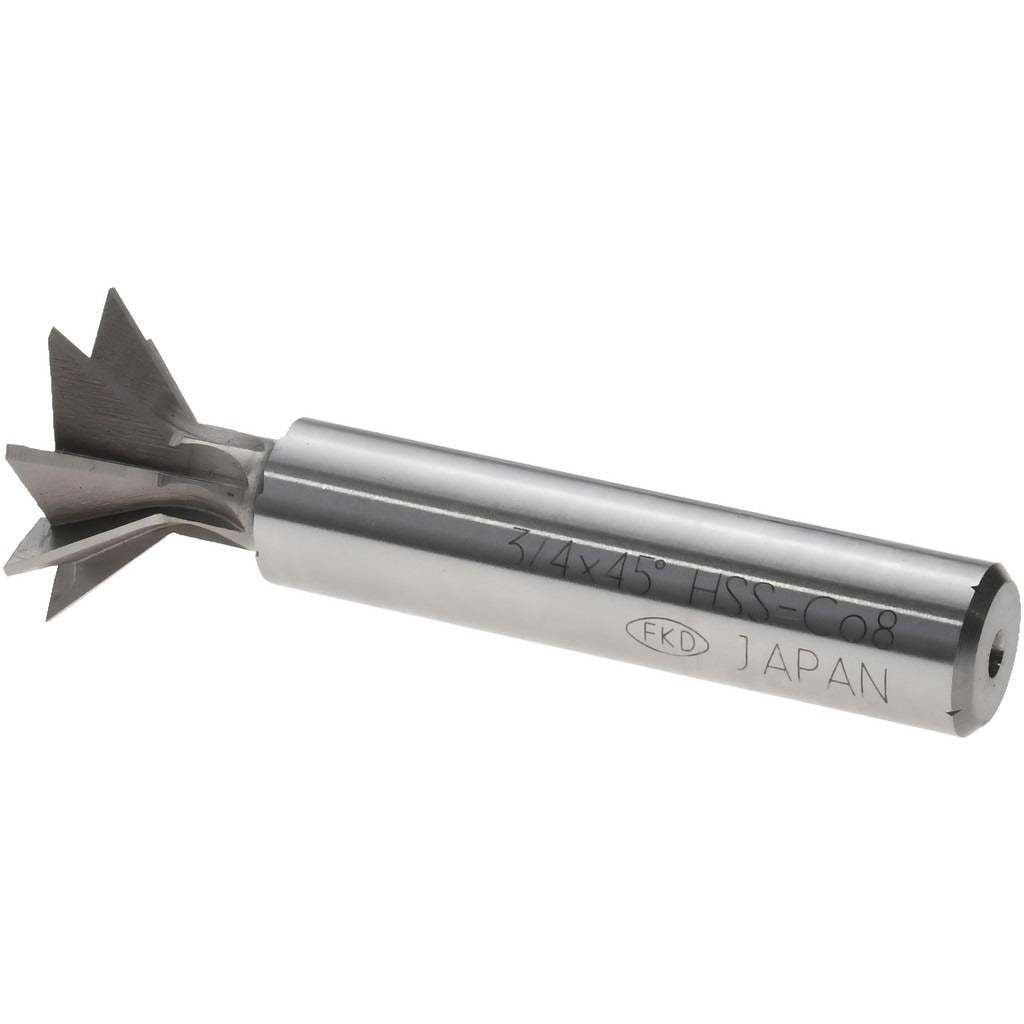

Value Collection DC4506CO Dovetail Cutter 45 Deg Cobalt

Product Description

The VALUE COLLECTION DC4506CO is a 45-degree dovetail cutter designed for milling dovetail slots and chamfers in metal workpieces. Built from M42 cobalt high-speed steel, this cutter delivers extended tool life in tough ferrous and non-ferrous materials. The 3/4 inch cut diameter and 5/16 inch cut width make it well suited for standard dovetail slide and T-slot applications. A 3/8 inch shank diameter provides a secure grip in standard end mill holders and collet chucks. Machinists and tool-and-die technicians use this cutter on vertical mills and CNC machining centers for precision dovetail form work.

This dovetail cutter is used in machine shops, production facilities, and maintenance departments where dovetail slots are required for slide ways, fixture plates, and mechanical assemblies. The 45-degree included angle is the most common dovetail geometry in general metalworking applications. The cobalt M42 material grade provides improved heat and wear resistance compared to standard M2 high-speed steel, making it a practical choice for higher-feed milling operations in alloy steels and stainless materials.

Key Features

• 45-degree included angle for standard dovetail slot profiles
• M42 cobalt high-speed steel construction for extended wear resistance
• 3/4 inch cut diameter suits common dovetail slide and fixture applications
• 5/16 inch cut width for controlled material removal per pass
• 3/8 inch shank diameter fits standard collet chucks and end mill holders
• 1-13/16 inch shank length provides adequate reach and rigidity

Compatibility

Designed for use in vertical milling machines and CNC machining centers accepting a 3/8 inch shank. Compatible with standard collet chucks, ER collet systems, and end mill holders sized for 3/8 inch tooling.

Installation Notes

Installation is performed by a machinist or tooling technician. Secure the shank fully into the collet or tool holder to the recommended engagement depth before tightening. Ensure the machine spindle is fully stopped and the machine is powered down before changing or seating the cutter. Use appropriate feeds and speeds for cobalt tooling in the material being cut to avoid premature edge wear.
