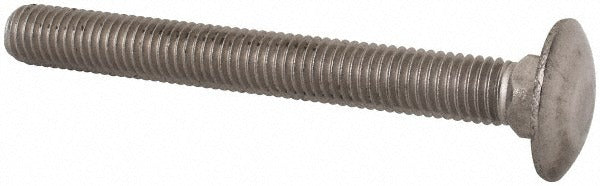

Value Collection CA6X10090-010BX Carriage Bolt M10x1.50

Product Description

The VALUE COLLECTION CA6X10090-010BX is a metric carriage bolt designed for applications requiring a clean, smooth bearing surface with a self-locking square neck. The bolt features an M10 x 1.50 thread and a 90mm length under head. It is manufactured from Austenitic Grade A2 stainless steel, which provides solid corrosion resistance in wet, marine, and chemical-exposure environments. This fastener is appropriate for use in fabrication, structural assembly, and maintenance work where stainless-steel hardware is required. Manufactured to DIN 603 standards, it delivers predictable dimensional compliance for metric fastener applications.

This carriage bolt is suited for general metalwork, woodworking, and structural connections in both residential and light commercial settings. The square neck seats into pre-drilled square holes or bites into wood substrates to resist rotation during tightening, allowing one-sided installation with a wrench or socket on the nut side. It is a common choice for equipment mounting, brackets, and assemblies where flush or near-flush bolt heads are preferred. Minimum order quantity is 10 pieces.

Key Features

• M10 x 1.50 metric thread for compatibility with standard metric nuts and threaded inserts
• 90mm length under head suits medium-depth through-fastening applications
• Square neck locks bolt against rotation during installation without requiring access to the bolt head
• Austenitic Grade A2 stainless steel provides corrosion resistance in wet and outdoor environments
• Manufactured to DIN 603 standard for consistent dimensional tolerances

Compatibility

Designed as an OEM-style replacement or direct-use metric carriage bolt conforming to DIN 603 specifications, suitable for use with any standard M10 x 1.50 metric nut or coupling nut.

Installation Notes

Installation is performed by inserting the bolt through a pre-drilled hole and seating the square neck to prevent rotation, then threading a nut from the opposite side. Use appropriately rated metric tooling and follow applicable structural or mechanical assembly codes for the installation environment. Do not over-torque stainless-steel fasteners, as galling can occur — applying anti-seize compound to the threads before assembly is a common field practice. Inspect the mating surface and hole diameter for proper fit before final tightening.
