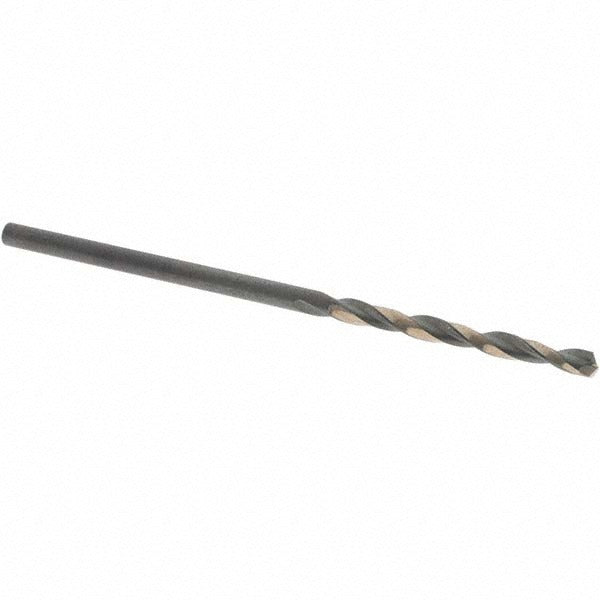

Value Collection C87738-1 Jobber Drill Bit 5/64 in Hss

Product Description

The VALUE COLLECTION C87738-1 is a high speed steel jobber-length drill bit designed for general-purpose drilling in metal, wood, and plastics. Built to heavy-duty grade from M7 HSS, it features a 135-degree split point that reduces walking and requires less feed pressure at entry. A black and gold oxide finish provides light lubricity and corrosion resistance. The bit measures 5/64 inch (0.0781 inch decimal) in diameter with a 1-inch flute length and a 2-inch overall length. Right-hand cutting with a regular spiral flute pattern. Suited for use in hand drills, drill presses, and CNC drilling fixtures in light manufacturing, fabrication, and maintenance environments.

This bit is sized at 5/64 inch, placing it in the 0.0500 to 0.1000 inch decimal range commonly used for pilot holes, small fastener clearance drilling, and precision metalworking tasks. The straight cylindrical shank fits standard Jacobs-style chucks and collet systems without modification. Web-thinned construction with a tapered web reduces thrust load at the cutting edge, making it practical for hand-fed operations where operator fatigue and bit deflection are concerns. Sold individually.

Key Features

• M7 high speed steel construction rated for heavy-duty drilling applications
• 135-degree split point reduces bit walking and lowers required feed pressure
• Web-thinned, tapered web design decreases thrust load during hand-fed drilling
• Black and gold oxide coating adds surface lubricity and light corrosion resistance
• Regular spiral flute promotes consistent chip evacuation in through-hole drilling
• Straight cylindrical shank compatible with standard drill chucks and collet holders

Compatibility

Designed as a standard jobber-length drill bit for use in any drill press, hand drill, or CNC machine fitted with a chuck or collet accepting a 5/64-inch straight shank.

Installation Notes

Installation is performed by machinists, fabricators, and maintenance technicians. Secure the shank fully in the chuck or collet and verify runout before drilling. Always wear appropriate eye protection and secure the workpiece. For drilling hardened or abrasive materials, confirm that the bit grade and coating are appropriate for the substrate before use.
