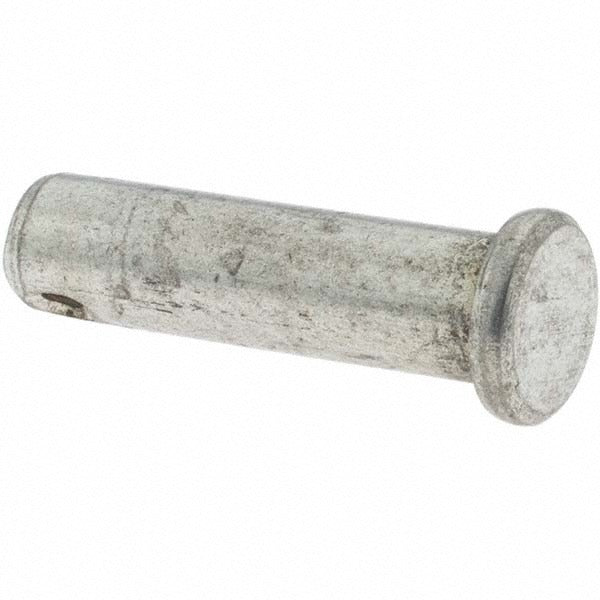

Value Collection C80162 Standard Clevis Pin 5/16 in

Product Description

The VALUE COLLECTION C80162 is a standard clevis pin used to secure clevis connectors, linkages, and pivot assemblies in mechanical and structural applications. The pin measures 0.3125 inches in diameter with an overall length of 1.125 inches and a usable length of 0.9375 inches. A 0.109-inch cotter pin hole is located at the retaining end to accept a cotter pin or snap ring. Constructed from steel with a zinc-plated finish, the C80162 resists corrosion in light-duty service environments. Machinists, millwrights, and maintenance technicians commonly use this type of pin when assembling or servicing clevis-connected rod ends, brackets, and actuator linkages.

This clevis pin fits standard clevis applications where a 5/16-inch pin diameter is specified. Typical installation scenarios include light-duty machinery linkages, agricultural equipment, hydraulic cylinder clevis mounts, and general industrial pivot points. The zinc-plated finish makes it suitable for indoor and sheltered outdoor environments where moderate corrosion resistance is needed. This item is sold individually with a minimum order quantity of 25 pieces, making it appropriate for maintenance shops and production facilities that require bulk fastener replenishment.

Key Features

• 5/16-inch pin diameter for standard clevis fittings requiring that bore size
• 1-1/8-inch overall length with 15/16-inch usable length for shallow clevis assemblies
• 7/64-inch cotter pin hole for positive retention with a cotter pin or snap ring
• Zinc-plated steel construction provides light corrosion resistance in sheltered service
• Sold individually with a minimum order quantity of 25 pieces

Compatibility

Designed as a standard replacement clevis pin for any clevis assembly specifying a 5/16-inch pin diameter, 1-1/8-inch overall length, and a 7/64-inch retaining hole.

Installation Notes

Installation is typically performed by a mechanic, millwright, or maintenance technician using standard hand tools. De-energize and lock out all mechanical, hydraulic, or pneumatic energy sources before removing or installing clevis pins in any linkage or actuator assembly. Insert the pin fully through the clevis bore until the cotter pin hole is clear of the fitting, then secure with an appropriately sized cotter pin or snap ring. Do not reuse deformed or corroded pins, as this can compromise the integrity of the connection.
