Value Collection C650552 Blind Rivet Size 816 50 Pack

Product Description

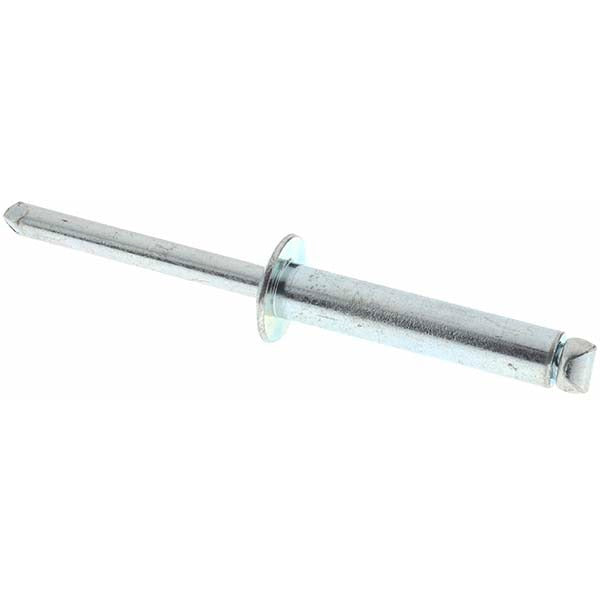

The VALUE COLLECTION C650552 is an open end blind rivet designed for fastening applications where only one side of the workpiece is accessible. Featuring a dome head profile and a steel body paired with a phosphate-finished steel mandrel, this rivet delivers reliable clamping force across a wide grip range. The body diameter measures 1/4 inch with a minimum hole diameter of 0.257 inches and a maximum of 0.261 inches. Tensile strength is rated at 1,550 pounds and shear strength at 1,270 pounds, meeting IFI Grade 30 fastener standards. Sold in a package of 50 rivets.

This rivet is sized 816 with a 1/2-inch head diameter and a grip range of 0.876 to 1.000 inches, making it suitable for joining sheet metal, brackets, enclosures, and structural panels in HVAC, plumbing, electrical, and general trade applications. The length under head is 1.25 inches. It is well suited for installations where a flush, consistent dome head finish is required and where access is limited to a single side of the assembly.

Key Features

• Open end blind rivet design allows installation from one side of the workpiece
• Dome head profile with 1/2-inch head diameter and 0.080-inch head height
• Grip range of 0.876 to 1.000 inches accommodates varying material stack thicknesses
• Tensile strength of 1,550 pounds and shear strength of 1,270 pounds per IFI Grade 30
• Steel body with phosphate-finished steel mandrel for corrosion resistance and consistent setting
• Packaged in quantities of 50 for job-site use

Compatibility

Designed as a standard Size 816 open end blind rivet suitable for use in applications requiring a 1/4-inch body diameter rivet with a drill size F pilot hole and a grip range of 0.876 to 1.000 inches.

Installation Notes

Installation requires a standard blind rivet tool sized for 1/4-inch body diameter rivets. Confirm the pilot hole diameter falls within the specified range of 0.257 to 0.261 inches before setting the rivet. Ensure all material layers are clamped flush before driving the mandrel to achieve full grip and rated strength. Discard spent mandrels and inspect the set rivet head for full dome formation before completing the joint.
